When not in operation
During an electrical storm, or when the unit will not be used for a lengthy pe-
riod of time (e.g. while you are on holiday), disconnect the unit from the mains
power supply.
Connecting the DVB receiver
Card reader for the smartcard:
> Slide the smartcard (with the gold chip facing
down and in the intendet direction of insertion)
carefully until it is fi tted into the card reader
Inserting the CI module:
> Follow the instructions of the manufac-
turer of the CI module and card.
> Slide the desired smartcard into the
relevant CI module.
> Now carefully slide the CI module into
the appropriate slot.

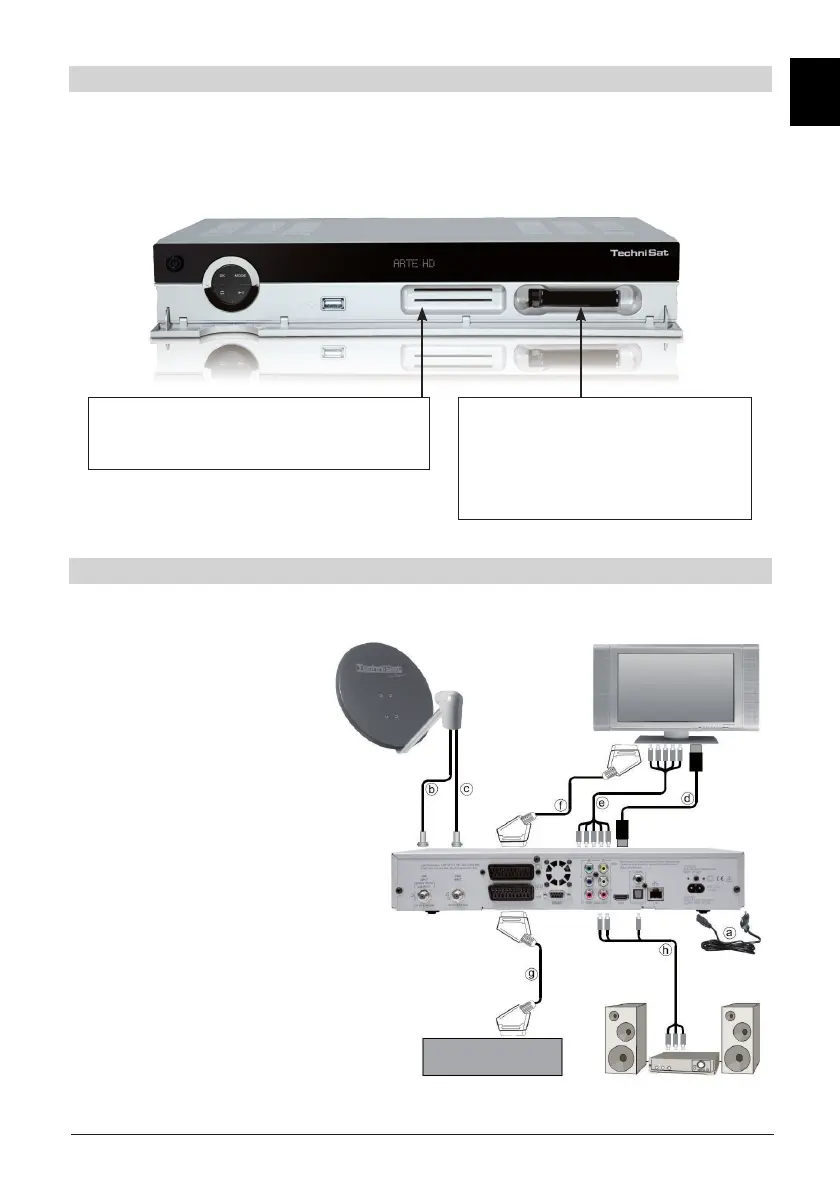

Video recorder
a. Mains connection
b. Connecting LNB 1 with
LNB Input 1 of the DVB receiver.
(Please note: When operating with
an antenna signal, the LNB must
be connected with the LNB Input 1.)
c. Connecting LNB 2 with LNB Input 2
of the DVB receiver.
d. Scart connection between the DVB
receiver and the television set.
e. Connecting from the component
socket of the DVB Receiver to the
component socket of the TV.
f. Scart connection between the DVB
receiver and the television set.
g. Scart connection from a video player
to the VCR Scart socket of the DVB
receiver.
h. Connecting the Audio outputs with a
HiFi-/Surround system.
To Next Page
