English
18

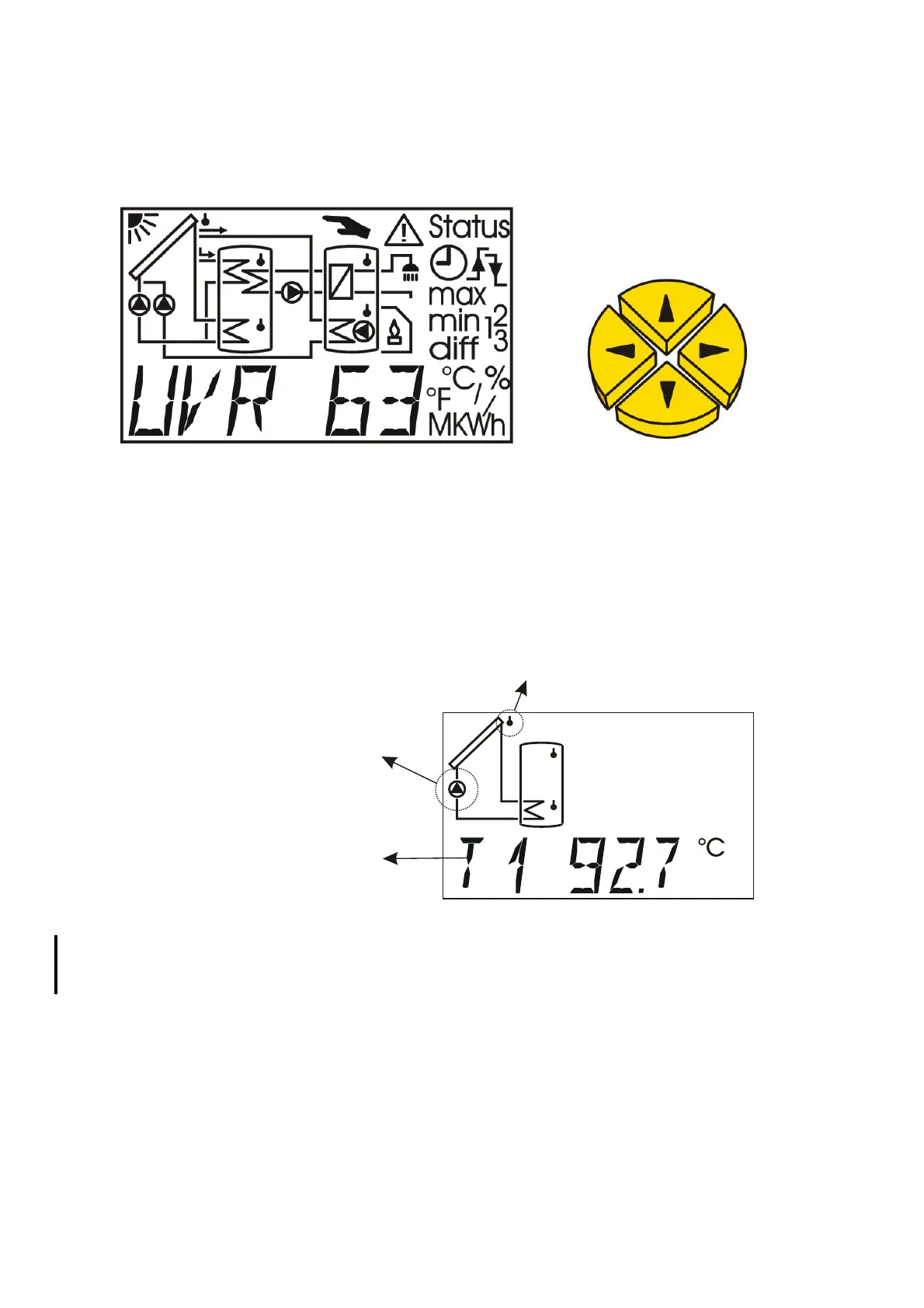

Operation
The large majority contains all of the icons needed for all of the important information as well as a
plain text field. Navigation with the co-ordination keys has been adapted to the display arrangement
= Navigation keys to select the display and change parameters.
= Entry in a menu, release of a value to modify with the navigation keys (enter key).
= Return to the last menu level selected, exit the parameter level for a value (return key).
In the main level, the left/right arrows are the navigation keys to select the desired display,
such as collector or storage tank temperature. A different sensor symbol flashes for each pressure
and the corresponding temperature is displayed.
Sensor symbol flashes: the temperature for this
sensor is displayed
Pump symbol flashes:
The output is active
(Pump is running)
Current temperature of
sensor 1
For programs, for which it is not possible to display a diagram in the display, the upper area remains
empty. For some programs, the display was only approximately matched to the actual diagram,
individual symbols may be missing.
To the side of the display, the currently active outputs are identifiable on the
green illuminated figures 1 - 3. If the speed control is active, the output 1
display flashes according to the speed stage.
3
2
1
