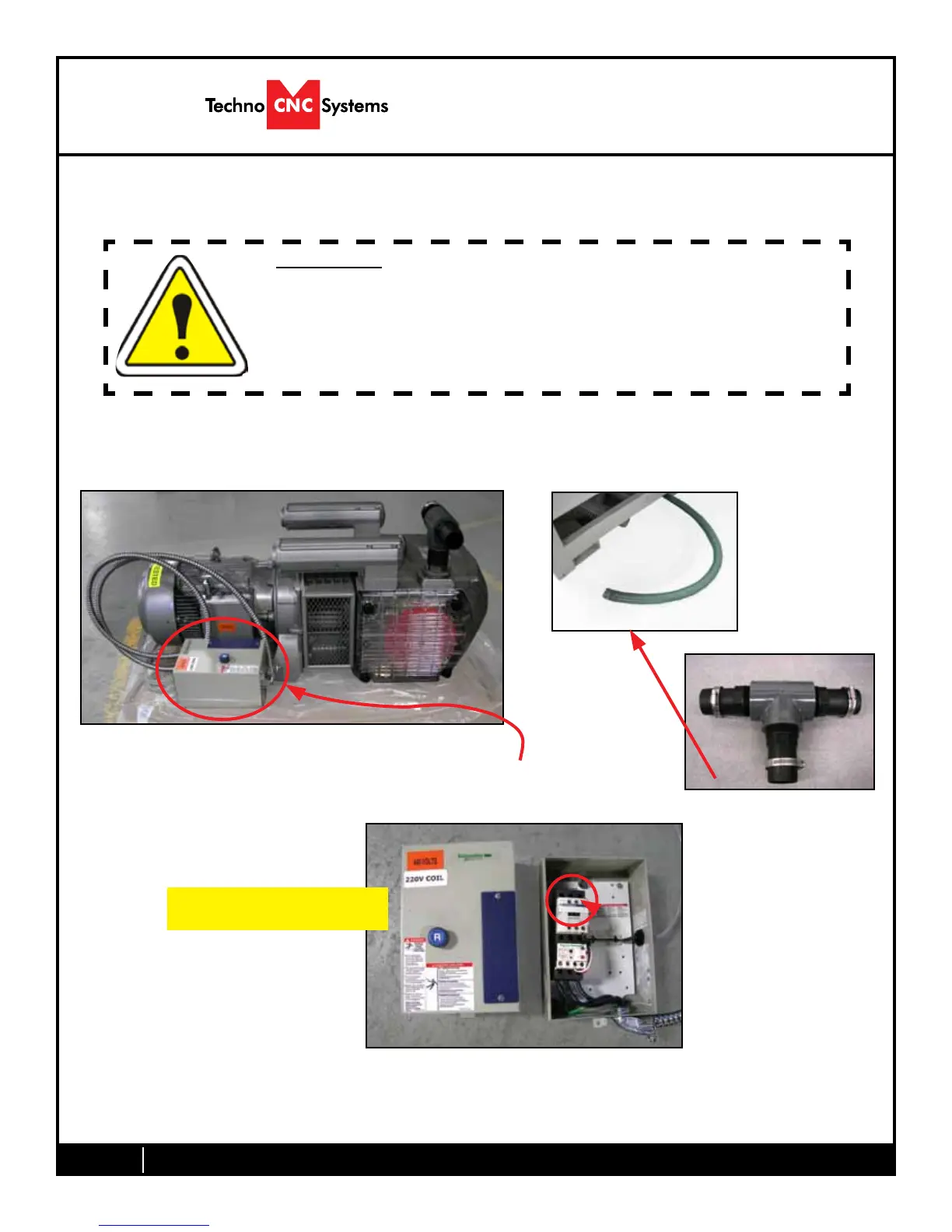

II. Vacuum Pump Installation
WARNING: Direction of Pump Rotation is critical.
BrieystartPumpandcheckrotation(arrow on casing).
Exchange phases if rotation is incorrect.
IF YOU RUN THE PUMP/BLOWER CONTINUOUSLY IN THE
WRONG DIRECTION,
THE VANES WILL BE DAMAGED.
NOTE:
The cover was
removed from Motor
Starter.
If a Vacuum Pump/Blower was part of your order, you will have
an electrical starter box that looks like this. You should not need
to wire the Vacuum Pump/Blower Motor, it has been wired and
tested at the factory.
You will need to have the electrician
connect AC power (220 or 440VAC) as
speciedontheunitheretotheMotor
Starter.
Pump/Blower Motor
Starter Box & Connector
Vacuum Hose
Vacuum Hose Kit
Use the
T-Connector
to connect the
vacuum pump
to the vacuum
hose under the
machine.
