Techno CNC Systems NK105G2 - HD Machine Lubrication

Call: 1-631-648-7481 or Visit: support.technocnc.com
53
HD Series Manual
NK105G2

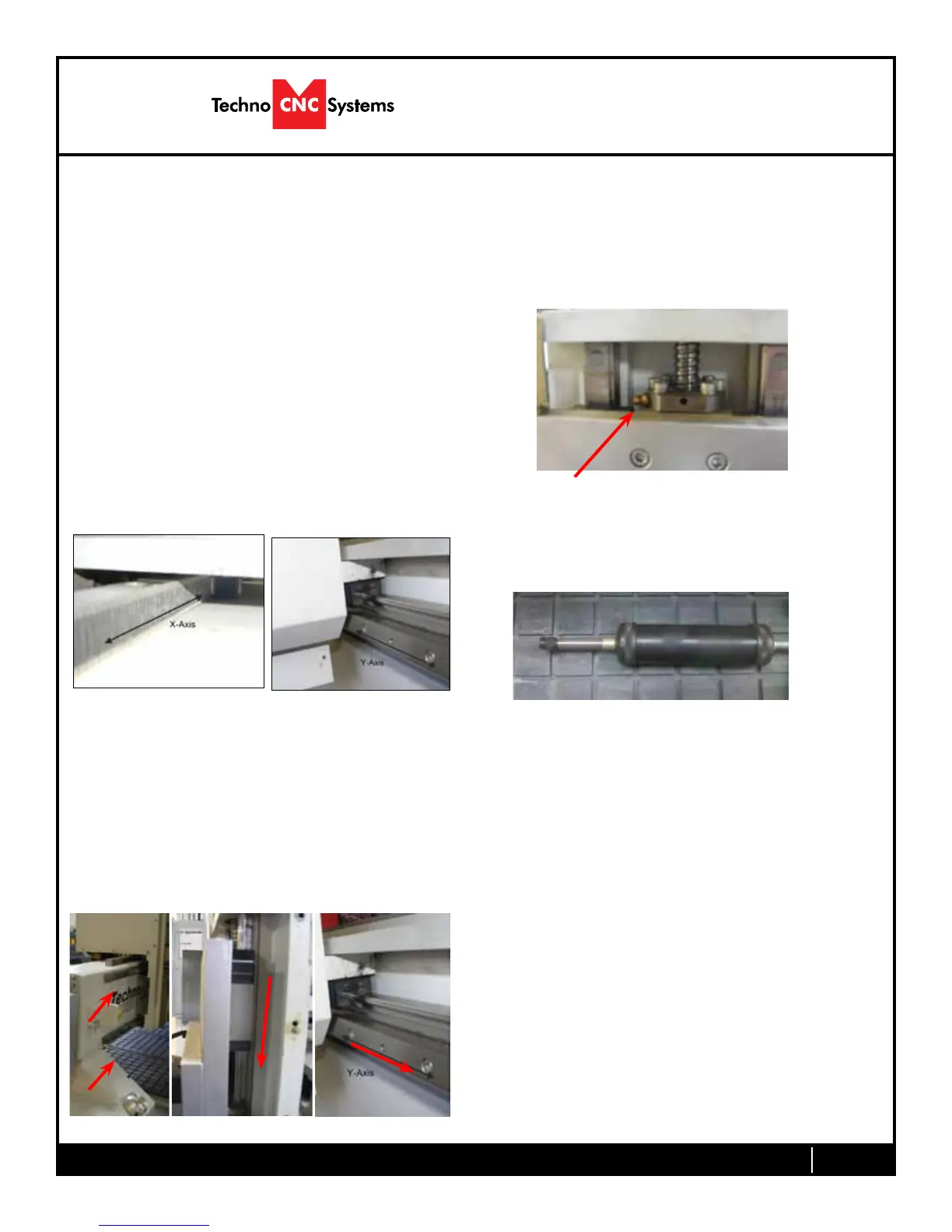

VI. HD Machine Lubrication.
5.1 Lubricating the X-Y Rack and Pinion.
Lubrication is important with rack and pinion
gearingsystems.Athinlmofgreaseshould
alwaysbepresentonthecontactingtoothanksto
minimize metal to metal contact.
Lithium grease lubrication is recommend over oil,
astheoillubricationwillowawayfromtooth
anks.
The grease should be applied to the rails at
regular intervals, depending on the usage of the
machine. Use a small brush to coat both rails on
the side of the Y-axis and the single rail across the
X-axis. Fig 5.1
Fig 5.1
5.2 Lubricating the X-Y-Z Rails
The rail carriage bearings are sealed and
protected with wipers. The rails should be lightly
oiled to allow smooth operation. Avoid a build up
of debris on the rails by blowing them off with air,
or wiping them down with a rag. The rails do not
need to be lubricated as often as the rack, once a
monthshouldbesufcient.
X-Axis Z-Axis
Y-Axis
Fig 5.2
5.3 Lubricating Z Ballscrew
The Z axis uses a ballscrew and ballnut instead
of a Rack and Pinion. The ballnut has a nipple for
applying lubrication to the mechanism. Fig 5.3a
Fig 5.3a
Lubrication
Point.
Lithium grease is pumped into the lubrication
point with the application gun provided with the
machine. Fig 5.3b
Fig 5.3b
5.4 Recommended Lubricants.
Lithium Based Grease:
Alvania Grease No. 2(Shell)
or Equivalent.
Techno Part No.
H90Z00-8670T8
Oil:
Vactra No. 2s(mobile)
Tonner Oil or Equivalent.
Techno Part No.
H90200-LUBE002
Oil and Grease Kit:
Techno Part No.
H90Z00-LUBEKIT2
NOTE: AVOID A BUILD UP OF DEBRIS ON
MOVING PARTS. CLEAN OFF ANY DEBRIS TO
AVOID DAMAGING THE
MACHINE.
