HD Series Manual
NK105G2

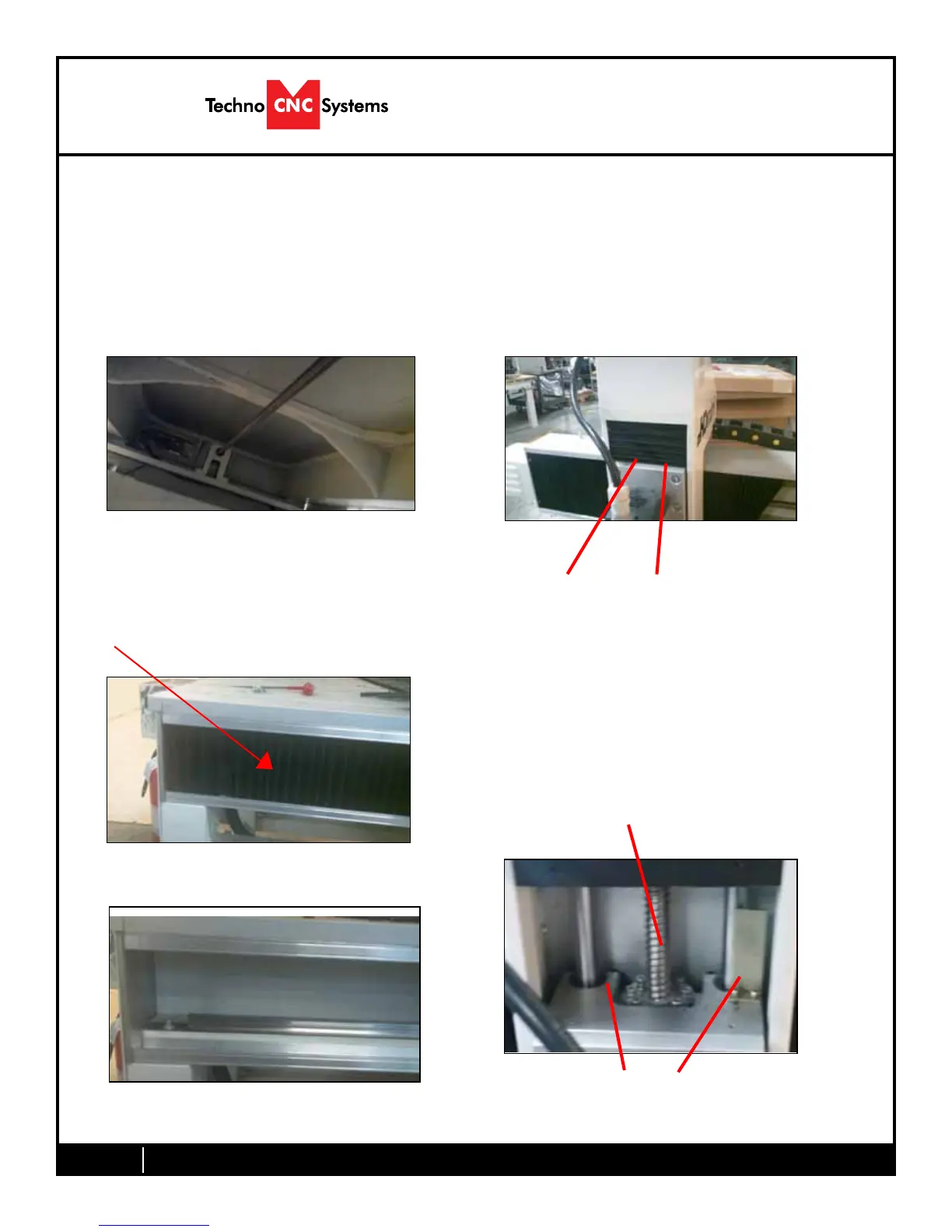

Clean off any debris and apply a light coat
of oil on the rails.
Clean off any debris and apply a light coat of
oil on the ball screw.
Access the rails by removing the covers on
each side of the machine.
Lubricating the Y Axis.
The Y axis ball screw is located under the
machine. It can be accessed from the back
of the machine, or by taking off the side
panels.
Lubricating the Z Axis.
To access the Z axis ball screw and
rails,rstjogtheZaxisdowntothe
lowest point it can go.
Clean off any debris and apply a light coat
of oil on the ballscrew and rails.
Ballscrew
Rails
Remove the screws that hold the
black covers in place.
