7.3. DISASSEMBLING THE CPU BOARD

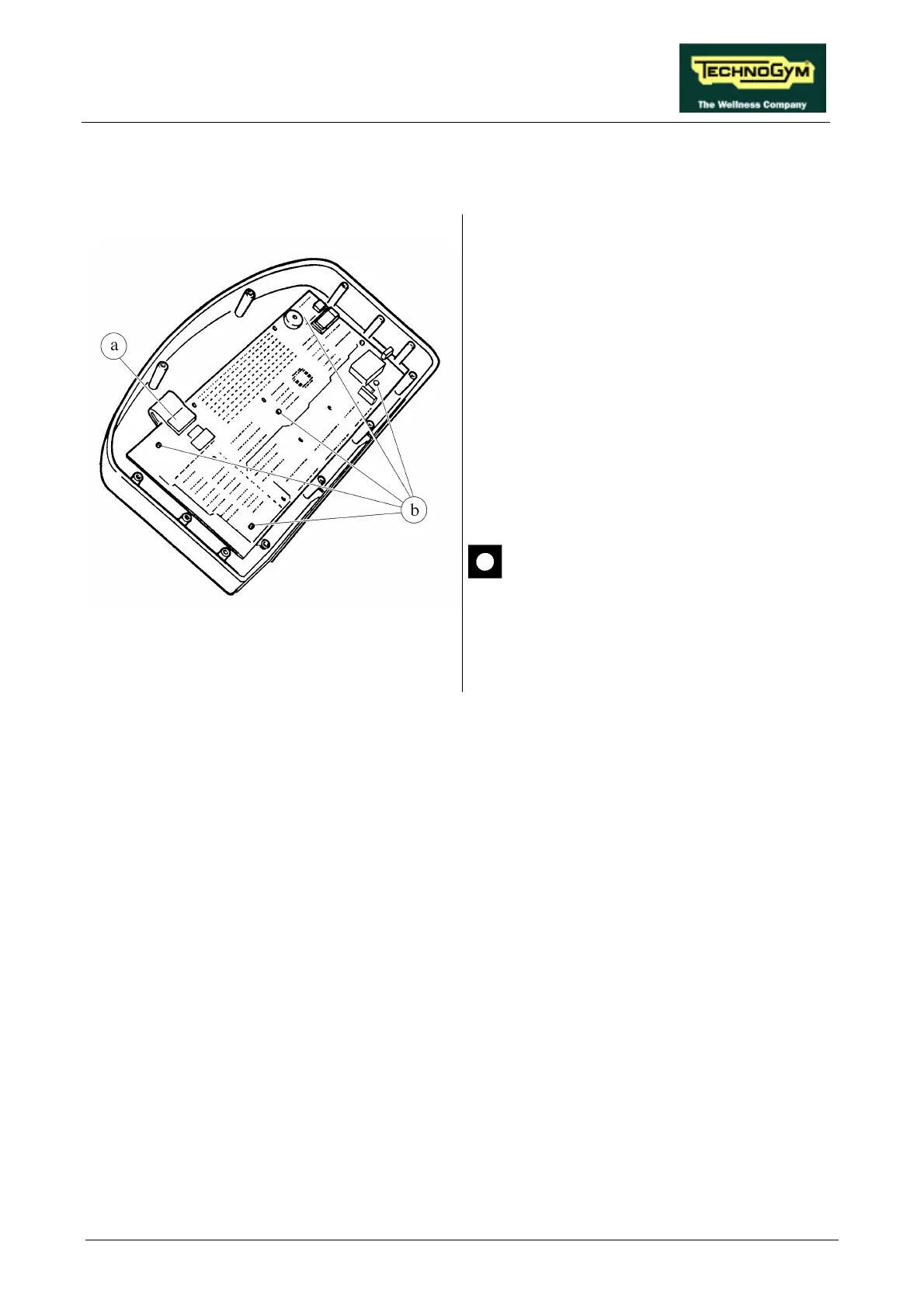

Figure 7.3-1
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Disconnect keyboard connector a.
2. Unscrew the 5 screws b, using a small
Phillips screwdriver.
3. Disconnect the cardio receiver connector if it
is still connected.
4. Remove the CPU BOARD.
This procedure must be carried out on a
work bench.
To reassemble the CPU BOARD, carry out the
above steps in reverse order.
