BIKE XT: Service & Maintenance manual - rev. 2.0
Page 7.11

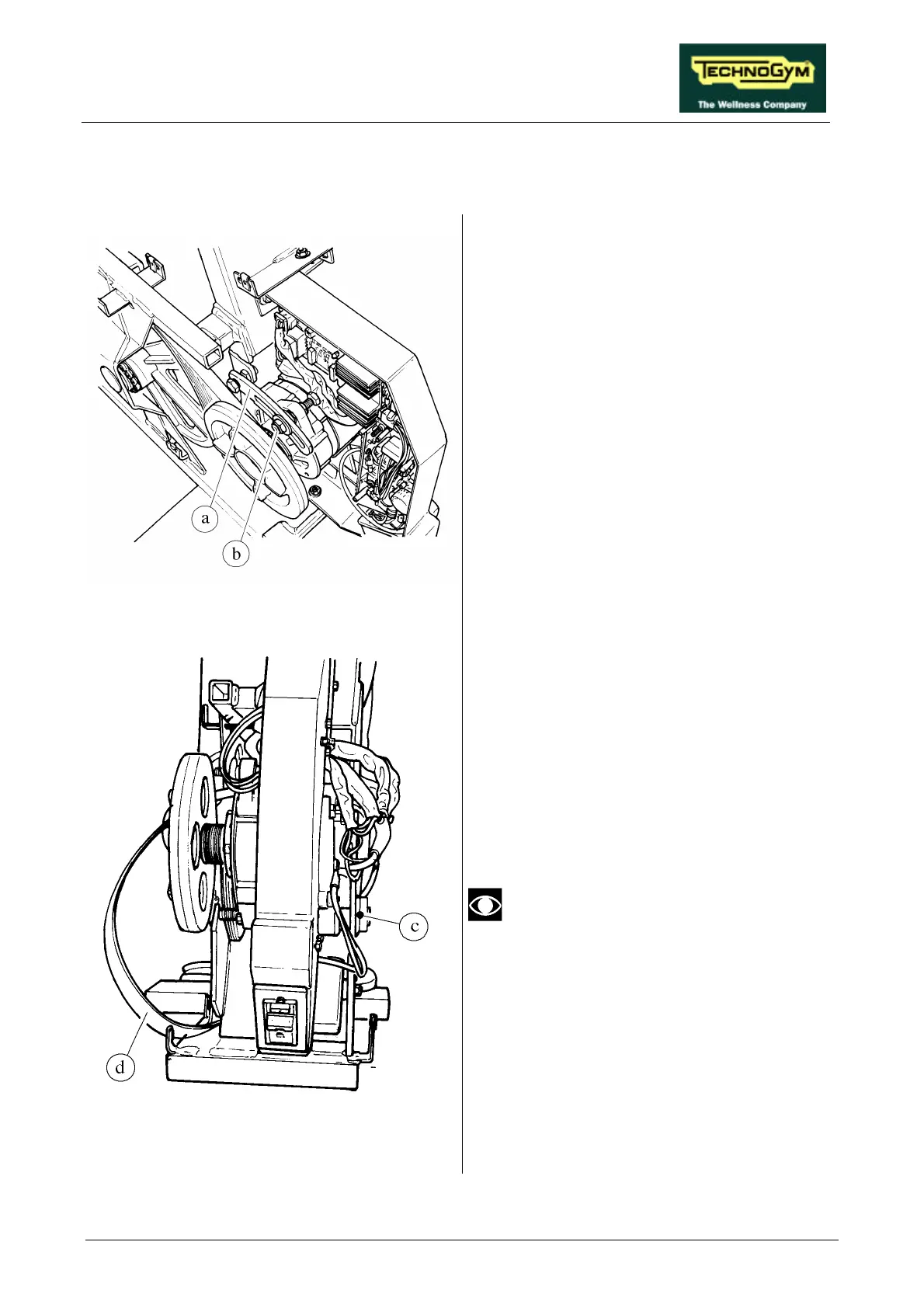

7.10. DISASSEMBLING THE BELT
Figure 7.10-1
Carry out the procedure described in paragraph
7.7. “Disassembling the right and left side
casings”.
1. Back off nut b of belt tension rod a using a
17-mm wrench.
Figure 7.10-2
2. Back off dowel c with a 4-mm hex T-
wrench.
3. Move the alternator until BELT d can be
removed.
To facilitate the operation, the belt can
first be removed from the pulley.
Continued on following pages →
