11.1.5. POSITION OF THE RECEIVER
Carefully position the receiver according to the specifications below:
• the coil must be directed toward the user;
• the coil must be positioned well away (even a few centimeters) from the LEDs;
• the cable must be folded immediately after the connection on the receiver, in order not to pass
near the coil;

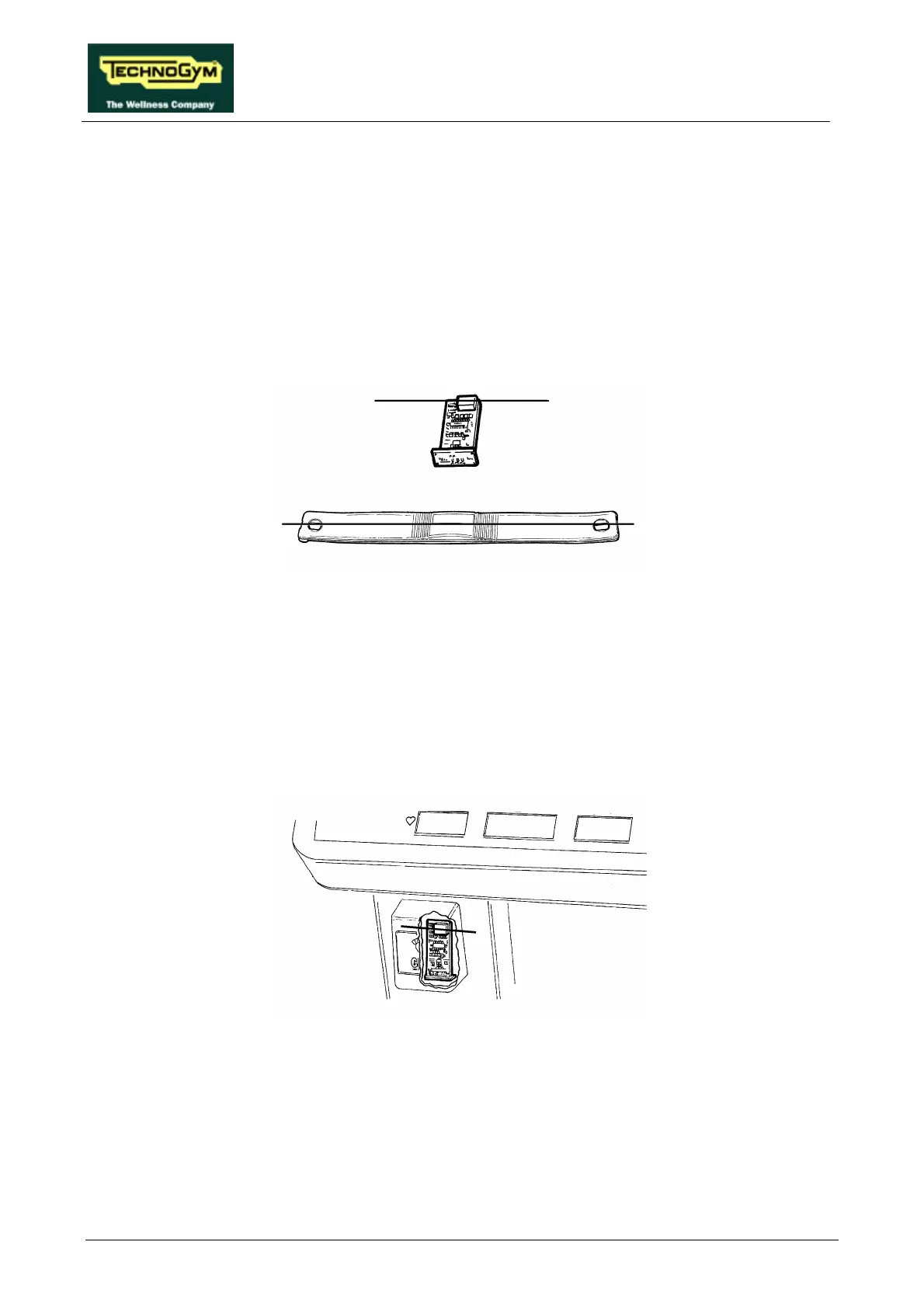

• the receiver must be directed in such a way that its axis of reception, shown in the figure below,
is parallel to that of the transmitter, shown in the figure below too:
Figure 11.1-2
Please note that even a slight deviations from the above specifications may considerably impair
the accuracy of reception.
The optimal situation is therefore that shown in the figure below:
• Receiver situated below the display.
Figure 11.1-3
