7.12. DISASSEMBLING THE ALTERNATOR BRUSHES

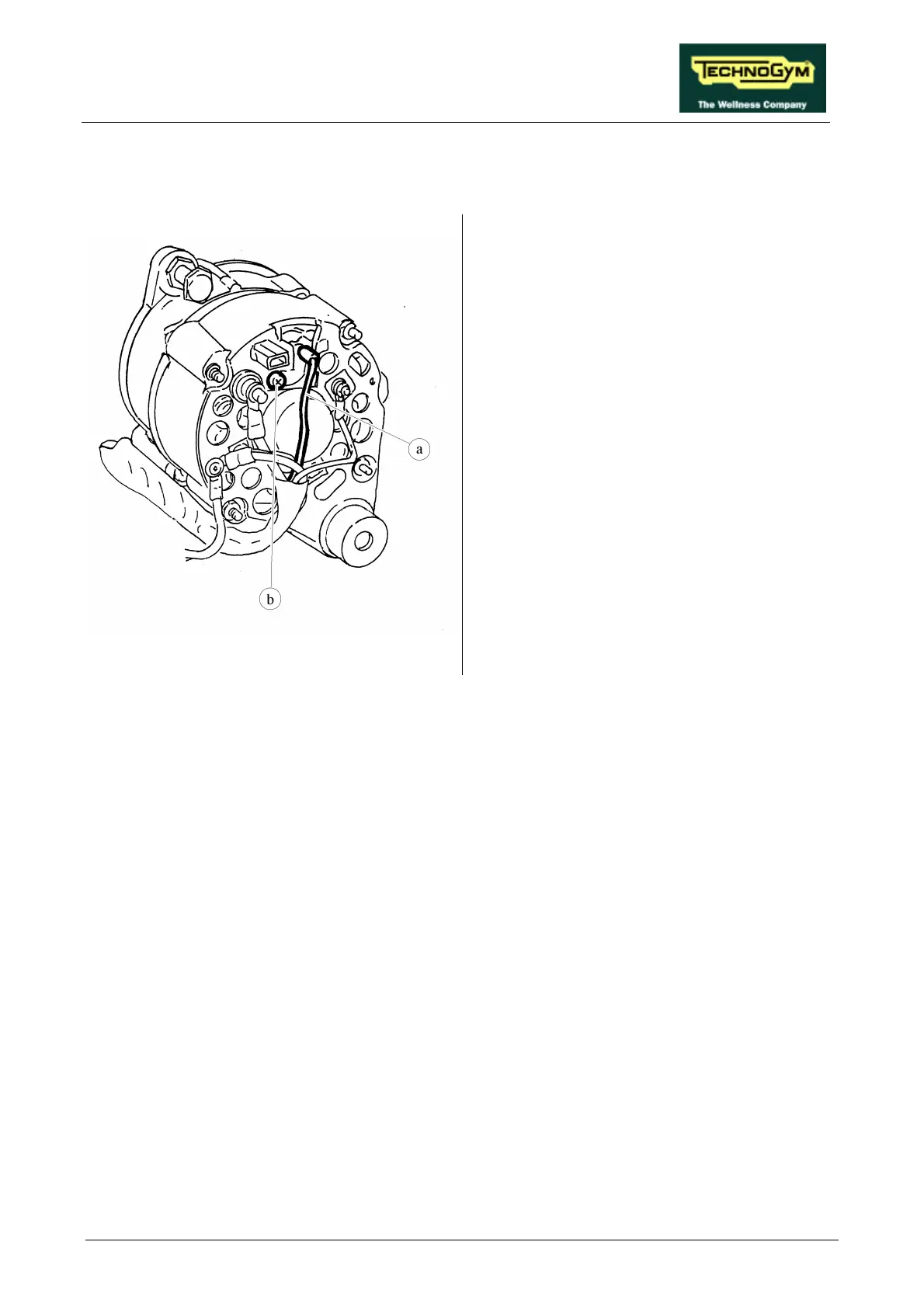

Figure 7.12-1
Carry out the procedure described in paragraph
7.7. “Disassembling the right and left side
casings” for the left side casing only.
1. Disconnect cable a from the alternator
2. Unscrew BRUSH group fixing screw b using
a medium Phillips screwdriver.
3. Remove the BRUSHES.
To reassemble the BRUSHES, carry out the
above steps in reverse order.
