Technogym BIKE XT - Disassembling the Saddle Stem Guard

BIKE XT: Service & Maintenance manual - rev. 2.0
Page 7.7
7.6. DISASSEMBLING THE SADDLE STEM GUARD

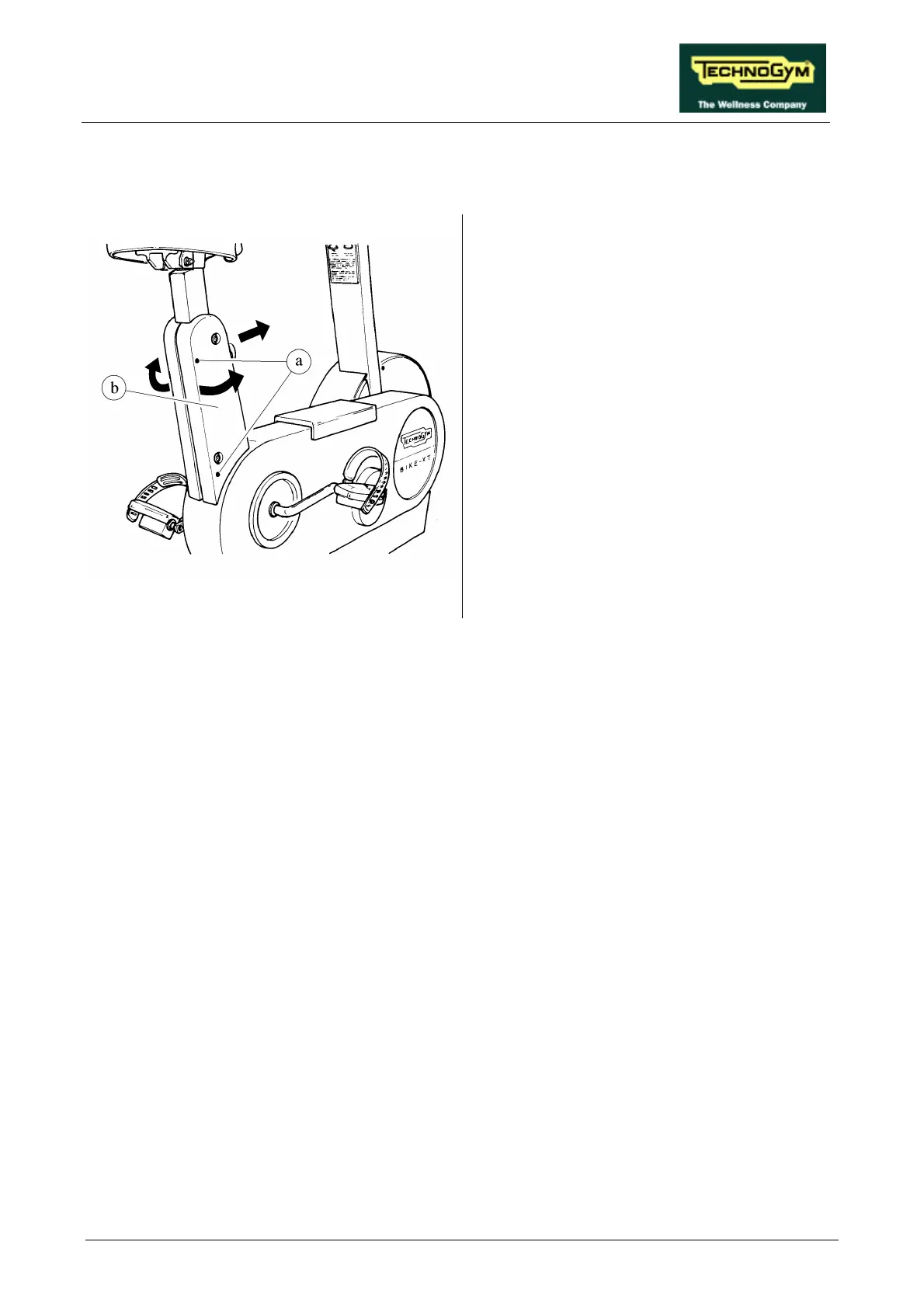

Figure 7.6-1
1. Turn off the machine and unplug the mains
lead from the wall output.
2. Unscrew the 2 Allen screws a using a 4-mm
hex T-wrench.
3. Remove the SADDLE STEM GUARD b.
To reassemble the SADDLE STEM GUARD,
carry out the above steps in reverse order.
