BIKE XT: Service & Maintenance manual - rev. 2.0
Page 7.6

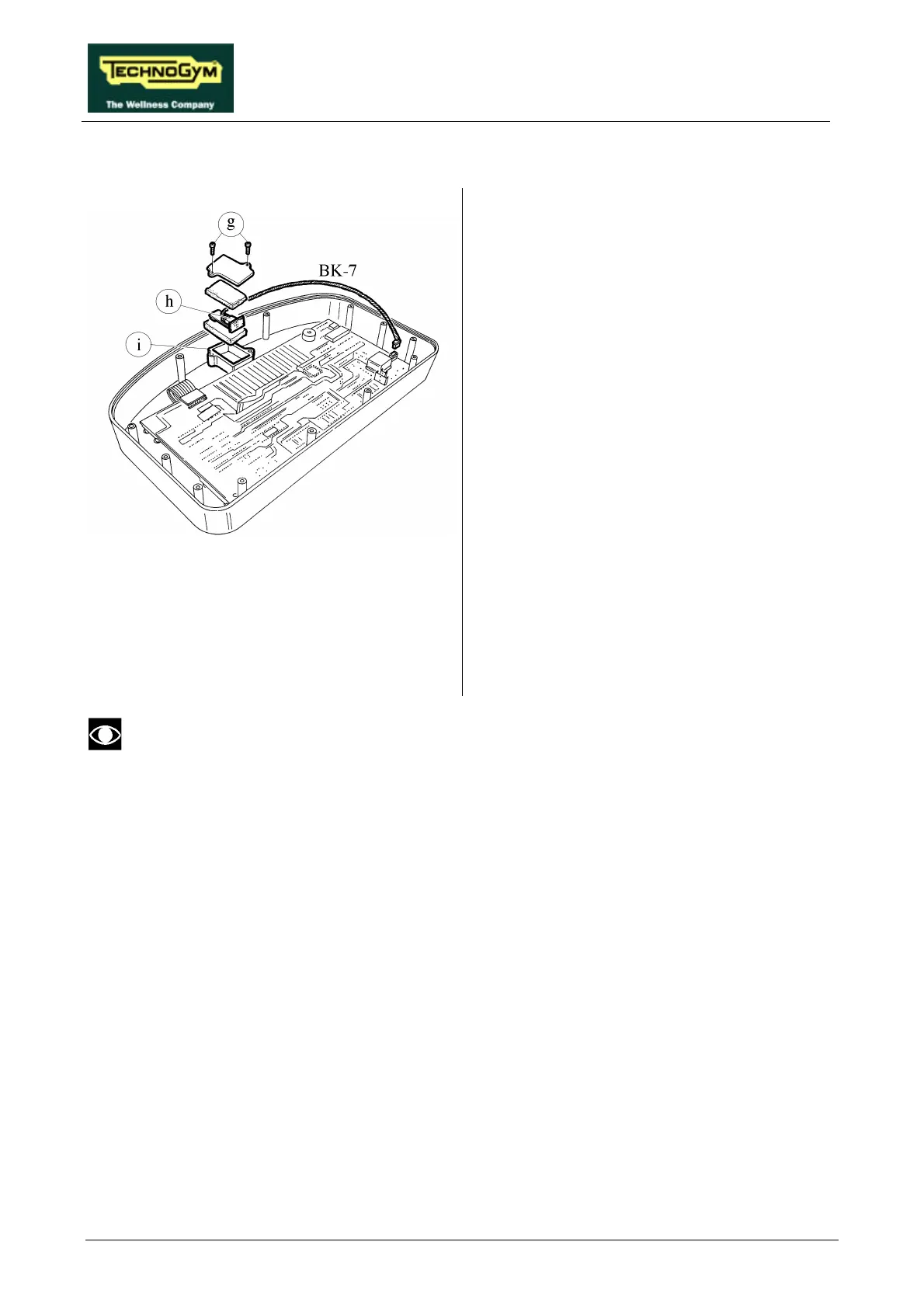

Version C: receiver housed in a box inside the display.
Figure 7.5-3
Carry out the procedure described in paragraph
7.1. “Disassembling the display”.
With the display on a work bench:
1. Unscrew the 2 screws g on RECEIVER
housing box i using a small Phillips
screwdriver.
2. Disconnect connector h of cable BK-7 from
the RECEIVER.
To reassemble the new RECEIVER, with the
display on a work bench:
3. Connect connector h of cable BK-7 to the
RECEIVER.
4. Position the RECEIVER in the box as shown
in the figure at left.
5. Lock down the 2 screws g of the RECEIVER
housing box.
WARNING: put the receiver and route the cables as described in paragraph 11.1.
“Technical notes on cardio receivers”.
