Technogym BIKE XT - Routing of Cables

BIKE XT: Service & Maintenance manual - rev. 2.0
Page 11.5

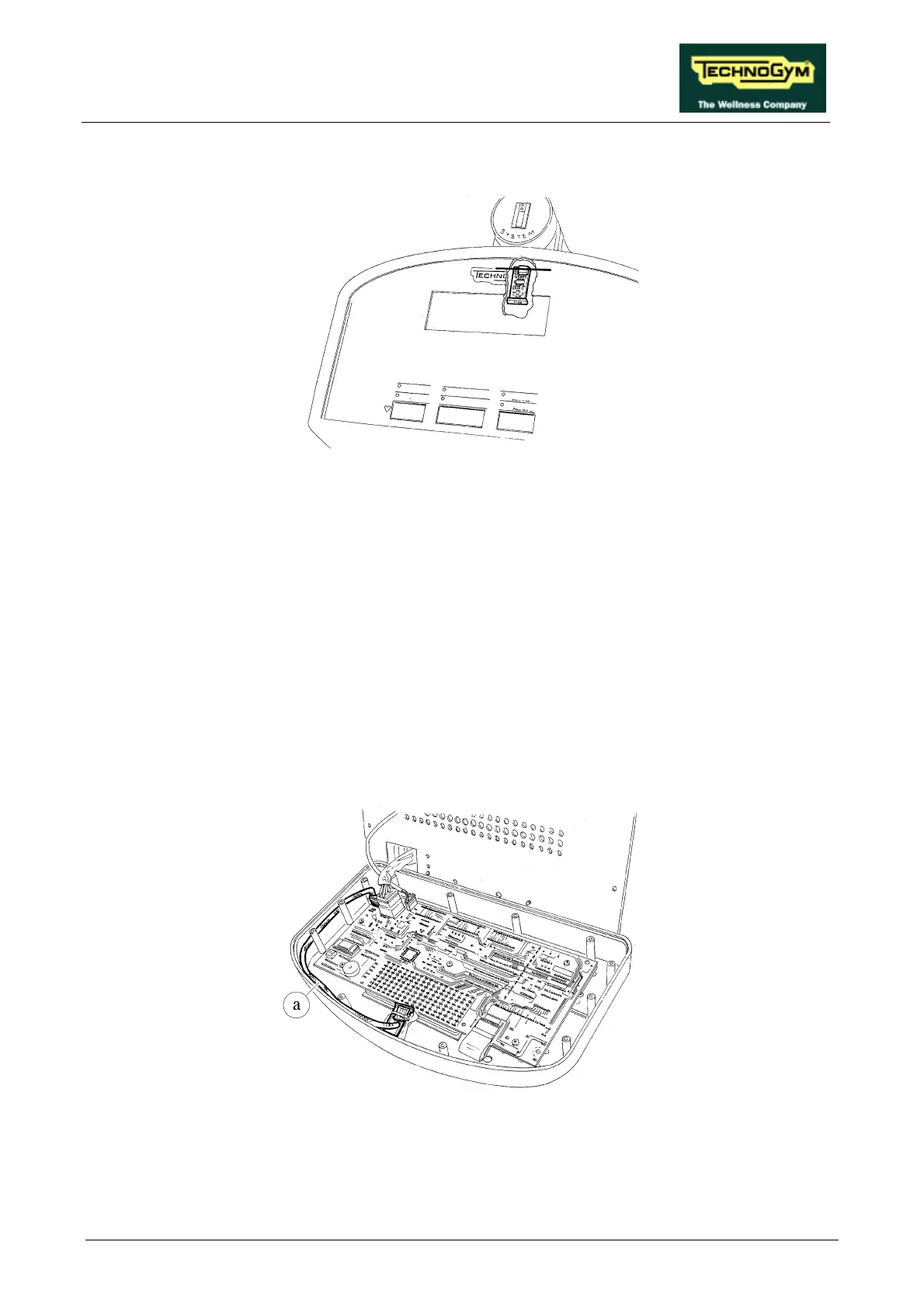

• Receiver housed in a box inside the display.
Figure 11.1-4
11.1.6. ROUTING OF CABLES
The cables must be routed with great care in order prevent them from interfering with the receiver
coil. Therefore, particularly in cases where the receiver is housed inside the display, it is
recommended to:
• Route cable a behind the studs which fix the display on its support, and not on top of the CPU
board;
• The TGS cable, if present, must be routed behind connector CN1 on the CPU board to ensure
that it does not go near the receiver coil when the display is closed.
The figure below illustrates the optimal routing described above.
Figure 11.1-5
