BIKE XT: Service & Maintenance manual - rev. 2.0
Page 7.13
Version B:

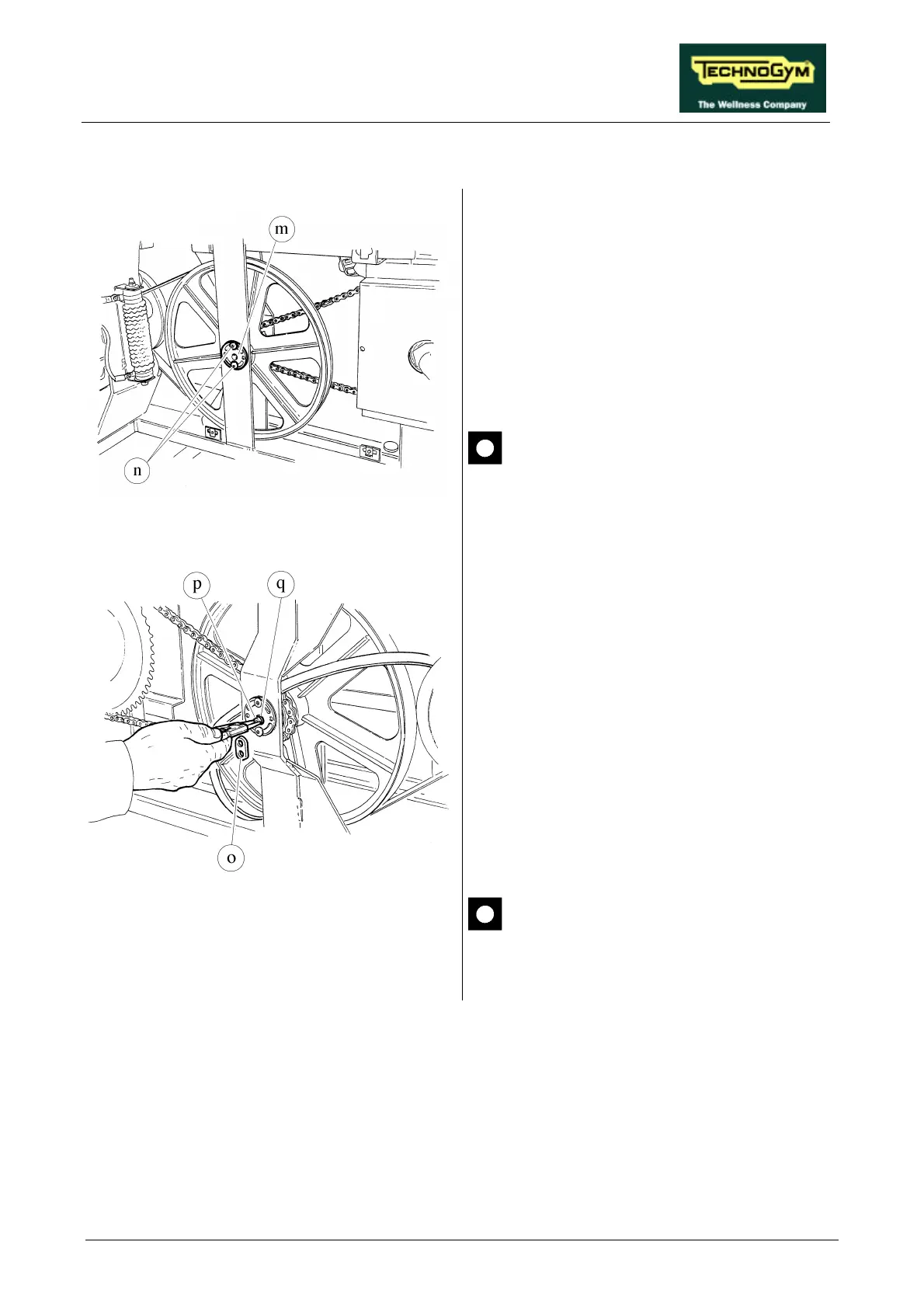

Figure 7.10-5
From both sides of the machine:
4. Use a marker pen to fix a point of reference
between cam m and the machine frame.
5. Unscrew the 2 screws n fixing the cam to the
frame using a 4-mm hex T wrench.
6. Disassemble the left hand cam.
The 2 cams are different: the one on the
left is threaded, the one on the right is
not.
Figure 7.10-6
Working from the right side:
7. Remove bracket o which clamps adjuster pin
p.
8. Use a 4-mm hex T wrench to unscrew
adjusting pin p until the right-hand cam
comes out.
9. Remove snap ring q using the special pliers.
10. Push the pin toward the left until there is
enough space for the BELT to pass through.
11. Remove the BELT.
To reassemble the BELT, follow the above steps
in reverse order.
After completing the procedure, adjust
the alignment and tension of the belt as
instructed in paragraphs 8.1. 8.2. .
