BIKE XT: Service & Maintenance manual - rev. 2.0
Page 8.4
Version B:

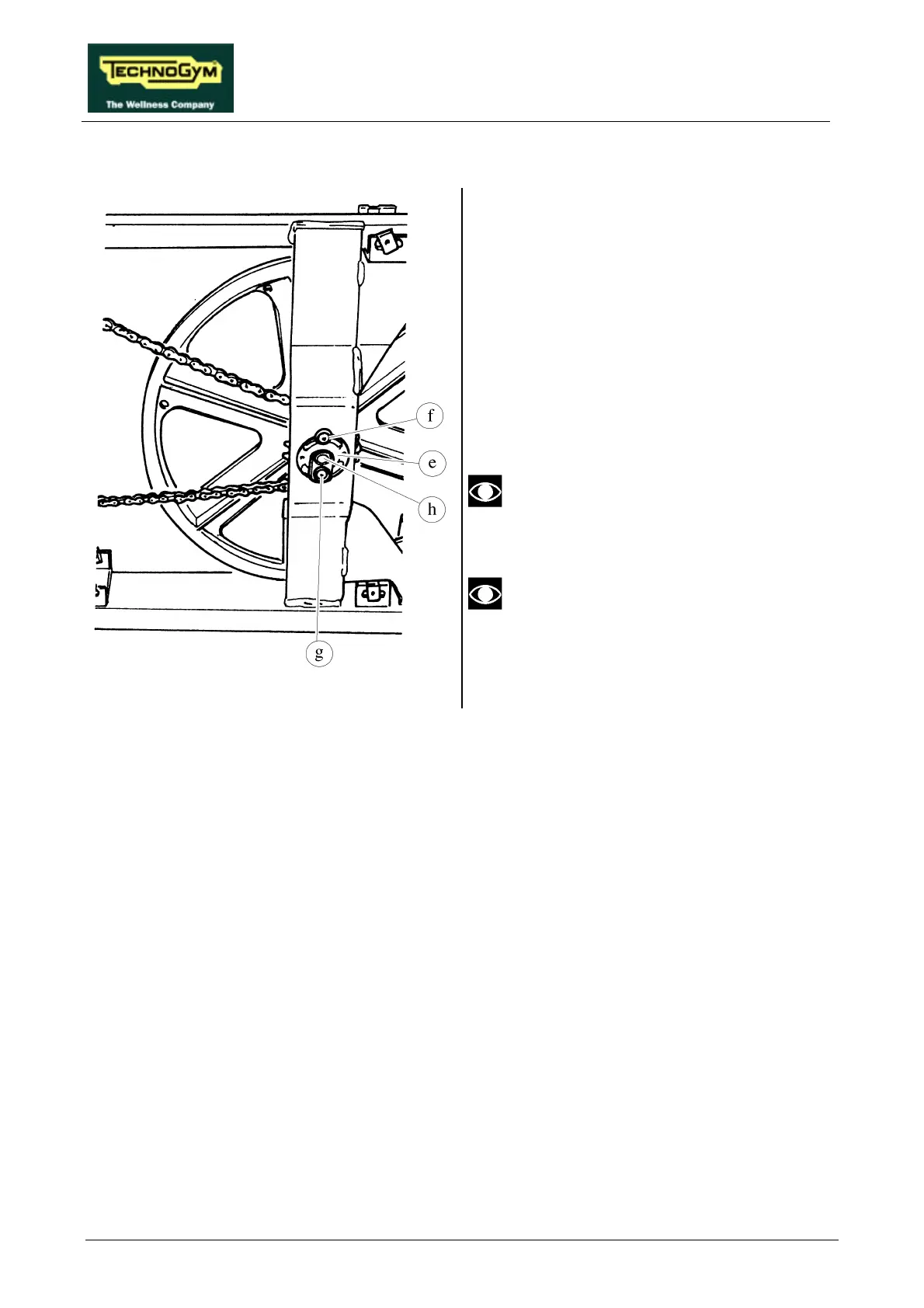

Figure 8.3-3
Carry out the procedure described in paragraph
7.7. “Disassembling the right and left side
casings”.
Working from the right-hand side:
1. Disassemble locking bracket g.
2. Using a 4-mm hex T wrench, rotate pivot h in
a clockwise or anticlockwise direction to shift
the pulley to the left or to the right.
To ensure correct alignment of the chain,
move it back and forth and make sure
that there is no noise.
After completing this procedure, check
the chain tension as instructed in
paragraph 8.4. .
