s e r v i c e s u p p l e m e n t

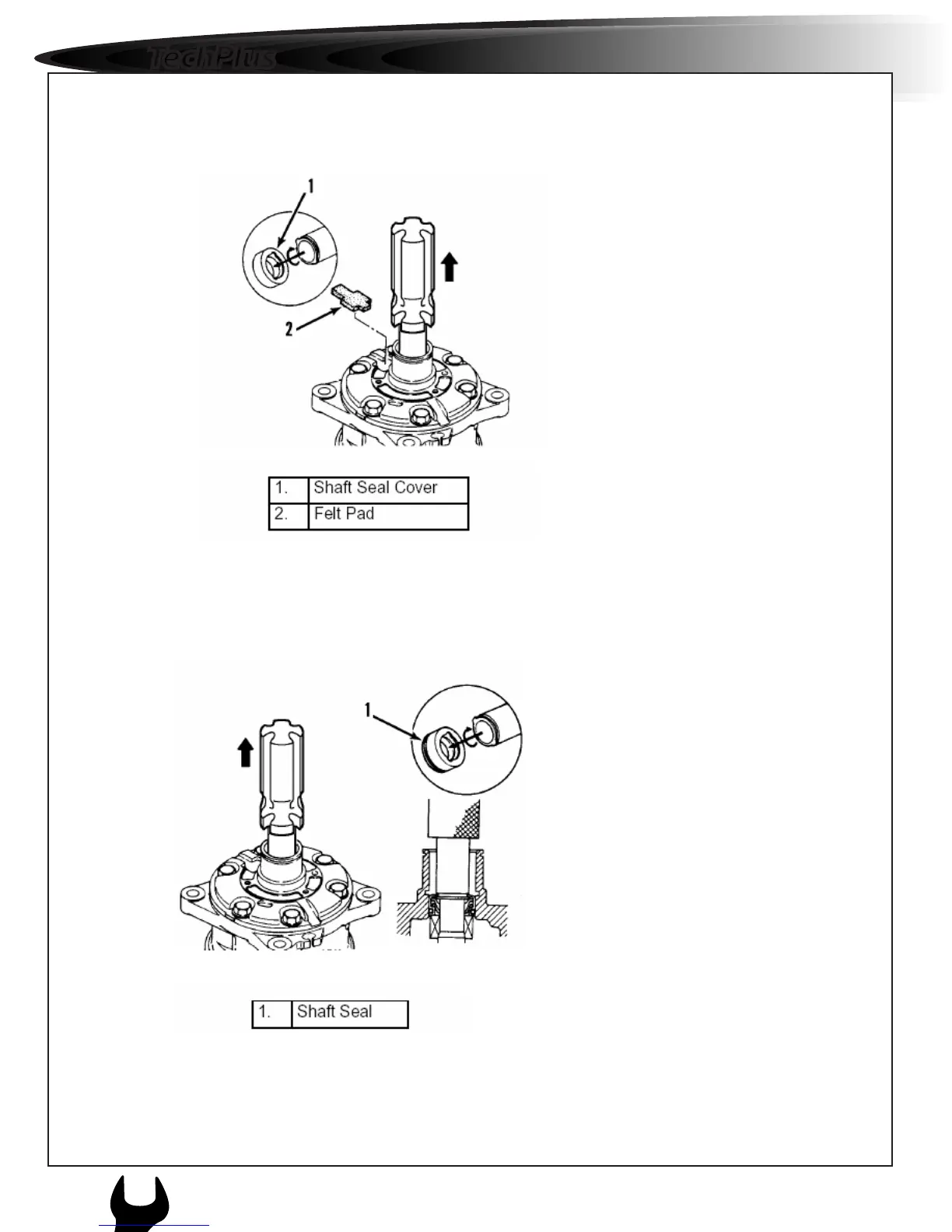

4. Use the seal remover to remove the shaft seal. Turn the seal remover to

engage the hook on the seal remover with the hook on the shaft seal, and

then slowly pull the seal out of the cylinder head.
