USER MANUAL
25

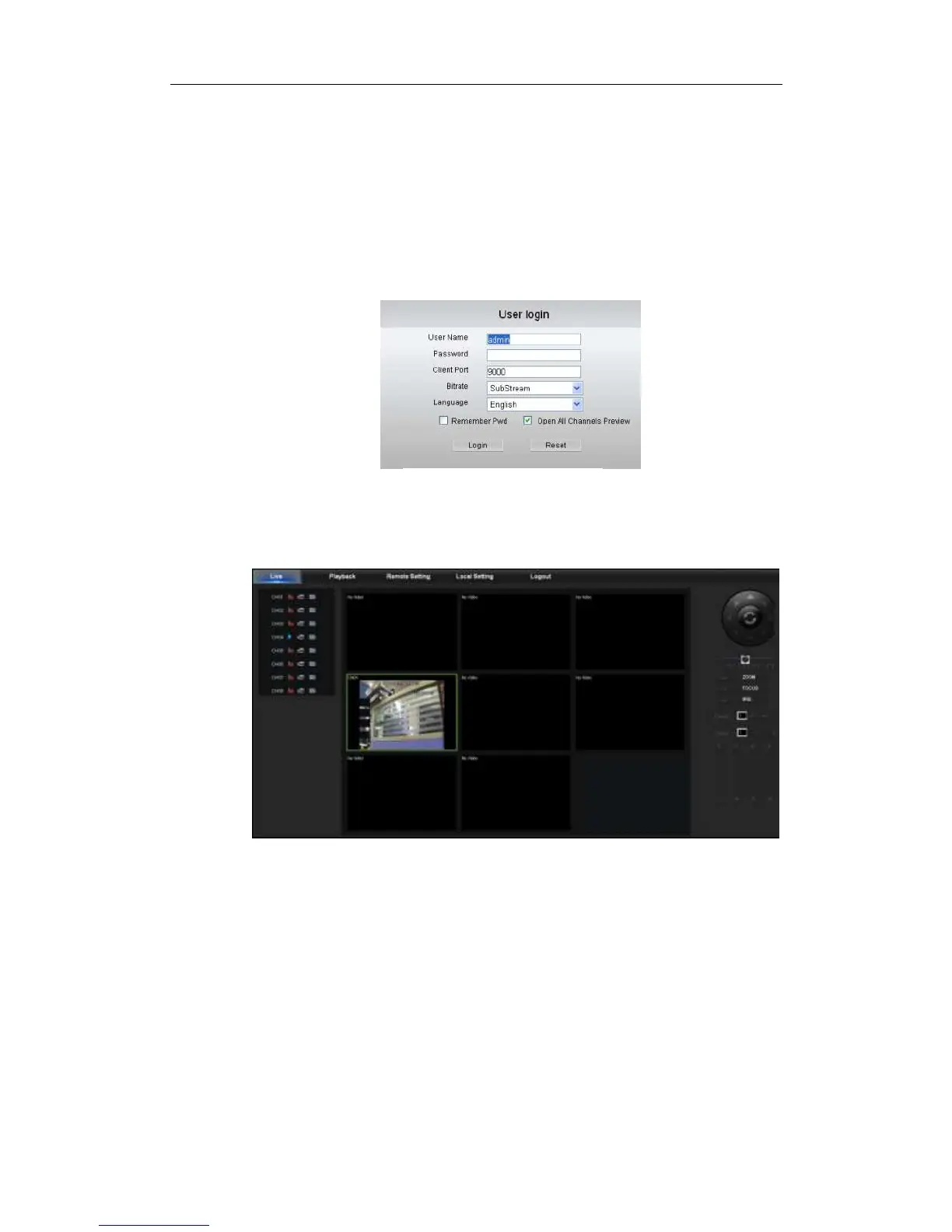

5.2 Web Application Manager Login
After ActiveX controls installation, please input user name and password, select
Main Stream or Sub Stream (In general, select main stream for intranet and sub stream
for outer net), and select language in the interface shown as picture 5-2. There is an
option for opening all channel preview, select it to open all live pictures. Press Login to
log in client and remotely visit NVR. The default password is admin and administer is
authorized to modify the password. Set password as per introductions of user
management in system setting.
5.3 Live Interface
5-3
Picture 5-3
Log in and enter into the live interface to establish video link, as shown in
Picture 5-3.
Picture 5-2
