FLIGHT MANUAL
Date: Issue 3: 25
th
May 2010
9-15
P92 - JS
S E C T I O N 9
SUPPLEMENTS
EQUIPMENT LIST
A/C S/N
DATE:
REF.
DESCRIPTION & P/N
S/N
INST
WEIGHT kg
DATUM m
F1
Towing Hook assy
*
3.8
4.01
F2
Rear-view mirror 92-12-900-000
*
0.2
1.60
2.7 SYSTEMS
The P92-JS for towing banners is equipped with a hook located in the rear part of
the fuselage. This hook is supported by a tubular beam [1] that transfers the towing
loads to the tail cone structure. The forward part of the beam is connected to the
bulkhead #4 by means of two vertical stringers [5-6] and two longitudinal stringers
[7] (not present in the P92-JS standard configuration). The rear link to the
bulkhead #5 is realised by a steel support [2] connected by means of two steel ties
[4-3] to the stabilator’s fitting plates.
The hook is a TOST E85 and is connected to the aluminium tubular beam by
means of aluminium plates.

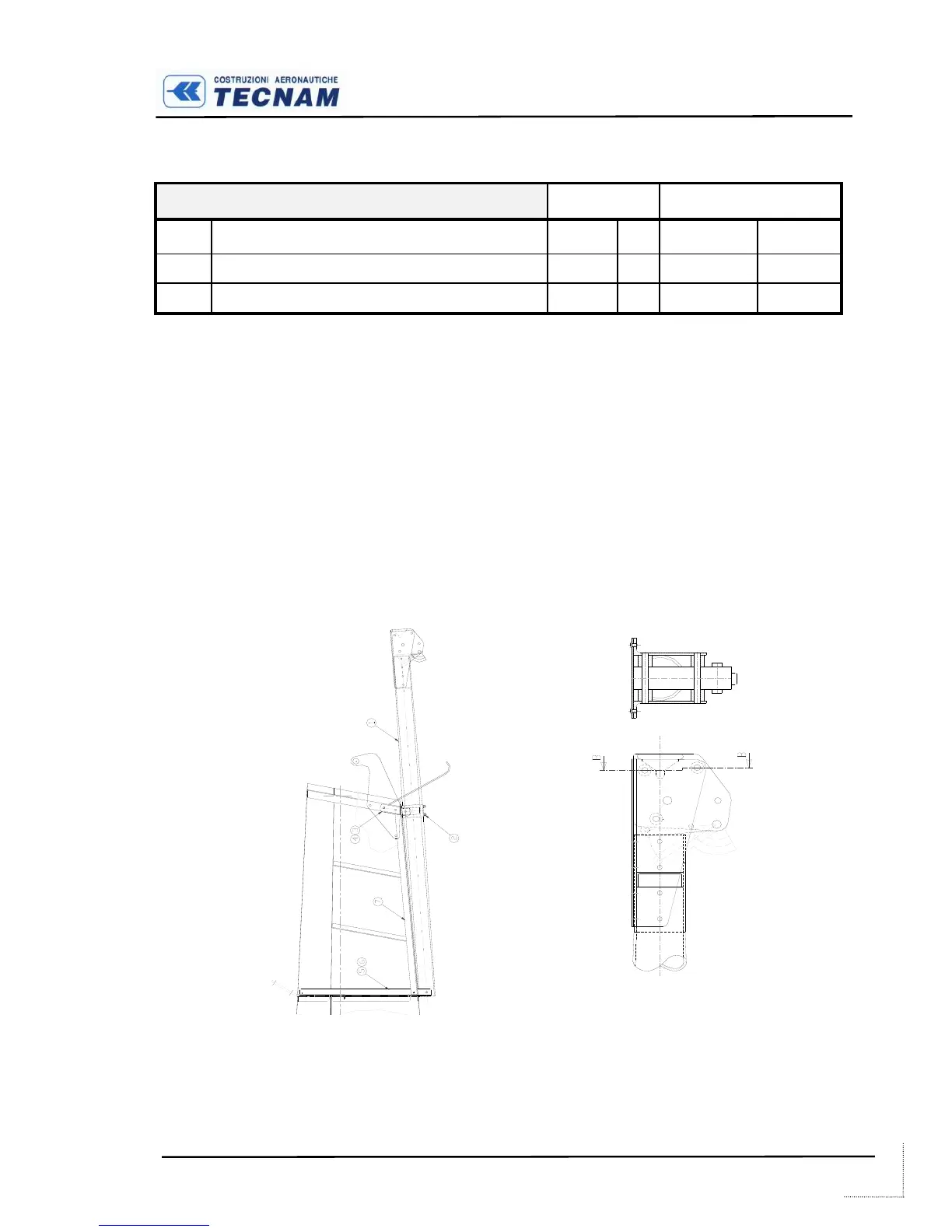

Supporting beam assembly
Hook connection
