Tecnam P92-JS - THREE-VIEW DRAWING

FLIGHT MANUAL
Date: Issue 3: 25
th
May2010
1-3
P92-JS
S E C T I O N 1
GENERAL

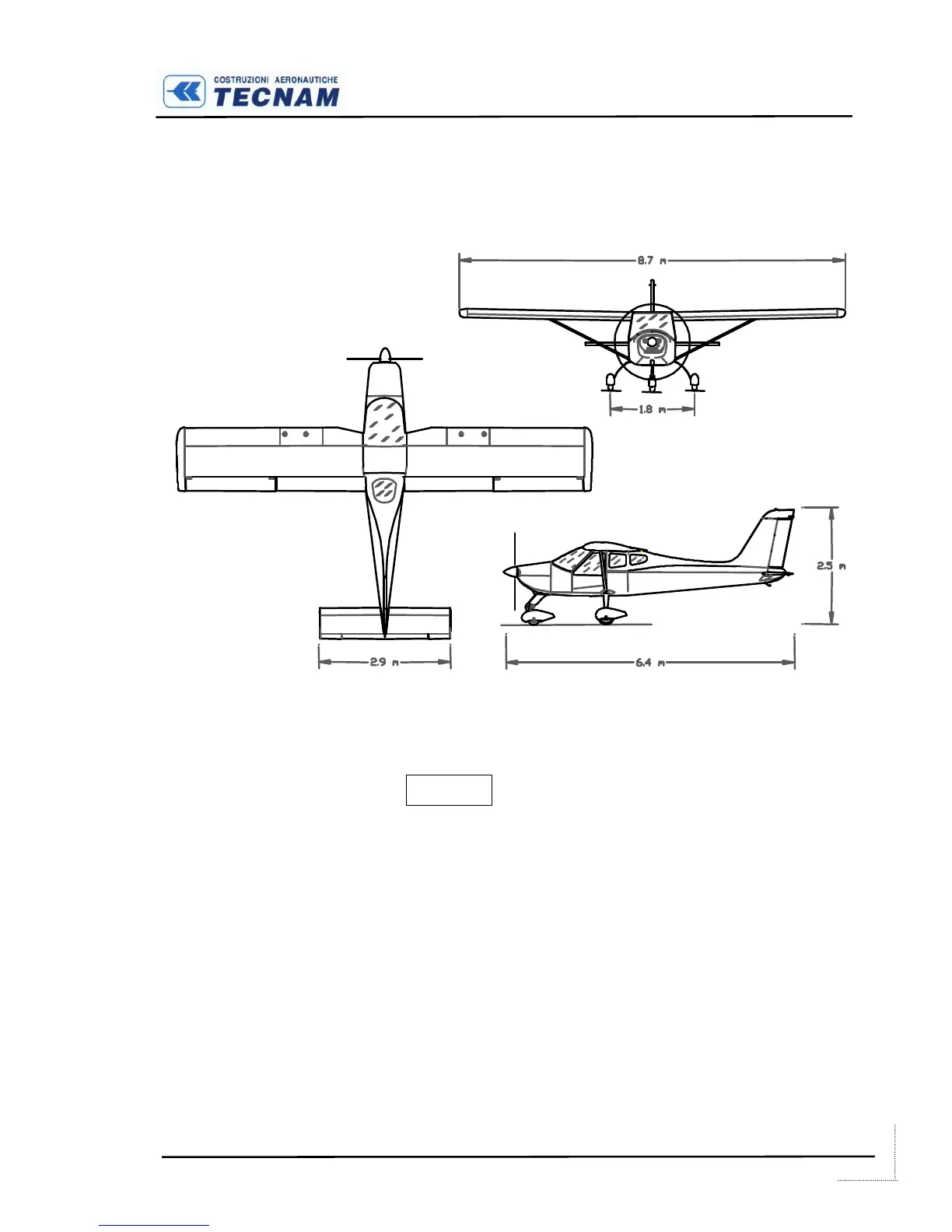

THREE-VIEW DRAWING
 Dimensions shown refer to aircraft weight of 550kg (and 600 kg) and
normal operating tire pressure.
 Propeller ground clearance 320mm
 Propeller ground clearance with deflated front tire and nosewheel
shock absorber compressed by 102mm
 Minimum ground steering radius 5.5m
NOTE
