INSTRUMENT PANEL
The conventional type instrument panel allows placement of a broad
range of equipment. Instruments marked with an asterisk (*) are
optional.

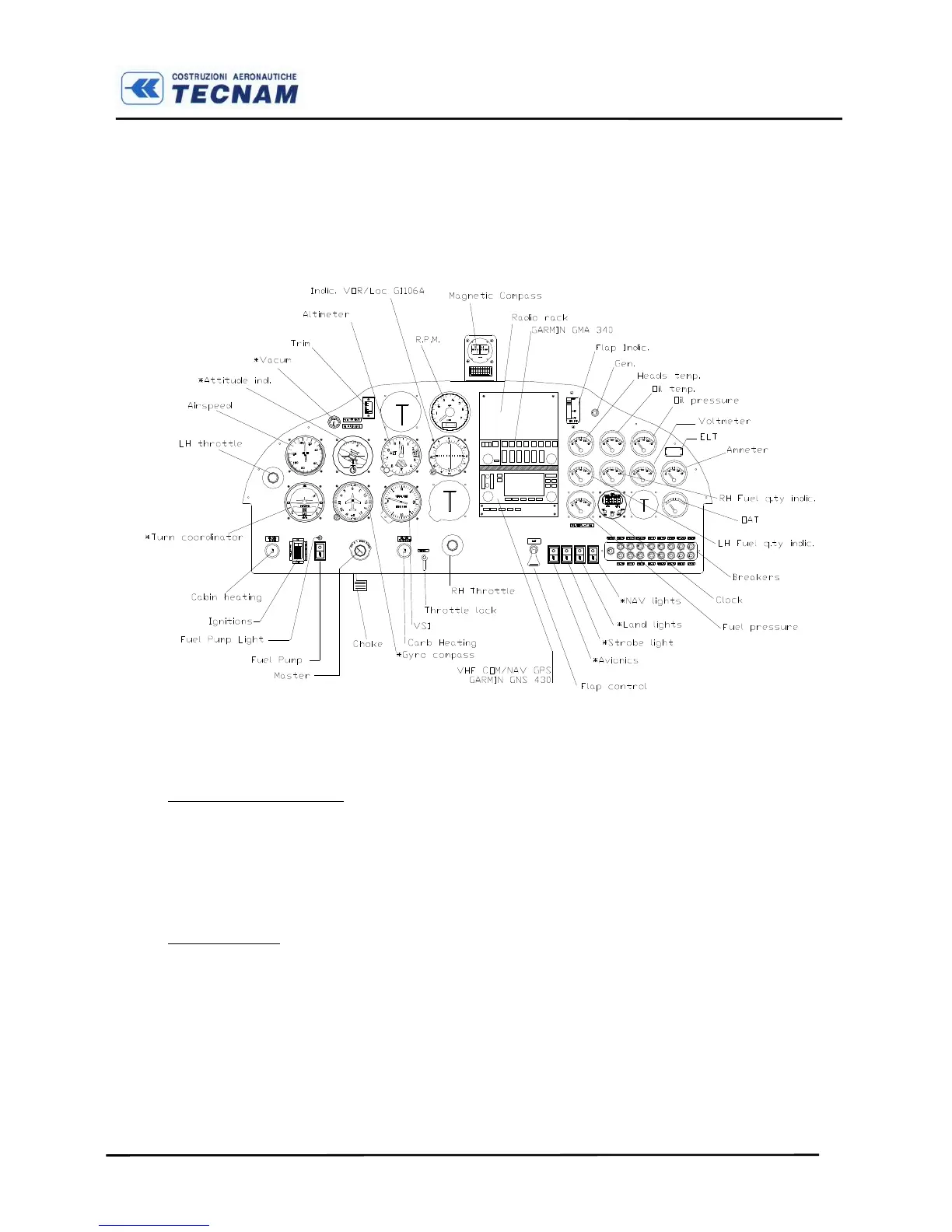

Fig. 7-2. INSTRUMENT PANEL
CARBURETOR HEAT
Carburetor heat control knob is square shaped and is located just to the left of
the center throttle control; when the knob is pulled fully outward from the
instrument panel, carbs receive maximum hot air. During normal operation,
the knob is OFF.
CABIN HEAT
The cabin heat control knob is positioned on the lower left side of the
instrument panel; when knob is pulled fully outward, cabin receives maximum
hot air. Vents are located by the rudder pedals and above instrument panel. If
necessary, outside fresh air can be circulated inside cabin by opening door
vents.
