5.8 SYSTEMS
The new analogical instruments panel is designed with a modular concept
to improve the instruments visibility.
The new instruments panel is divided into three main parts. The left part
with the flight instruments, central part with the avionic instruments and the
right part with the engine instruments.

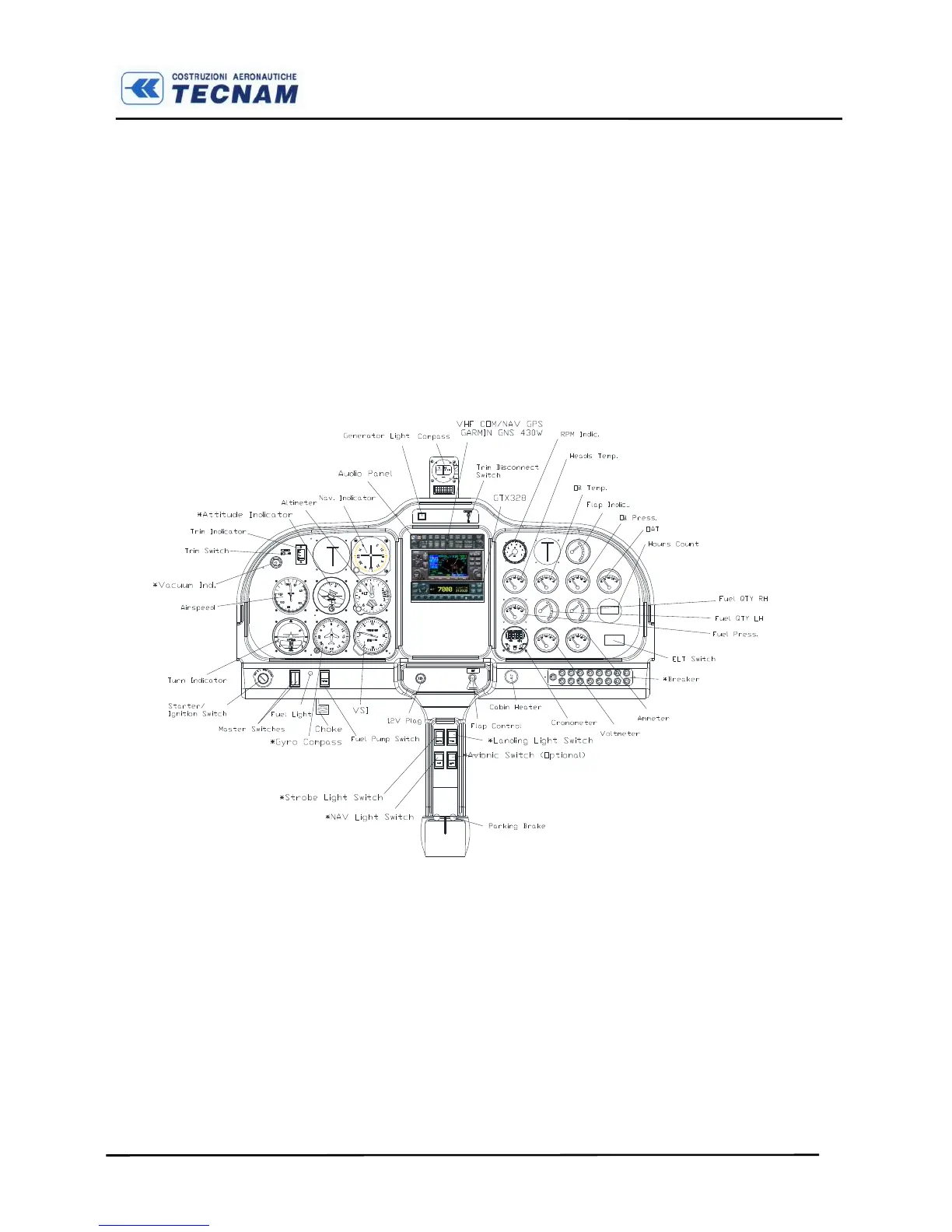

The following picture shown the new analogical instruments panel.
OBS
Figure 9-4
