Tecnam P92-JS - Systems

FLIGHT MANUAL
Date: Issue 3: 25
th
May 2010
9-19
P92 - JS
S E C T I O N 9
SUPPLEMENTS
3.7 SYSTEMS

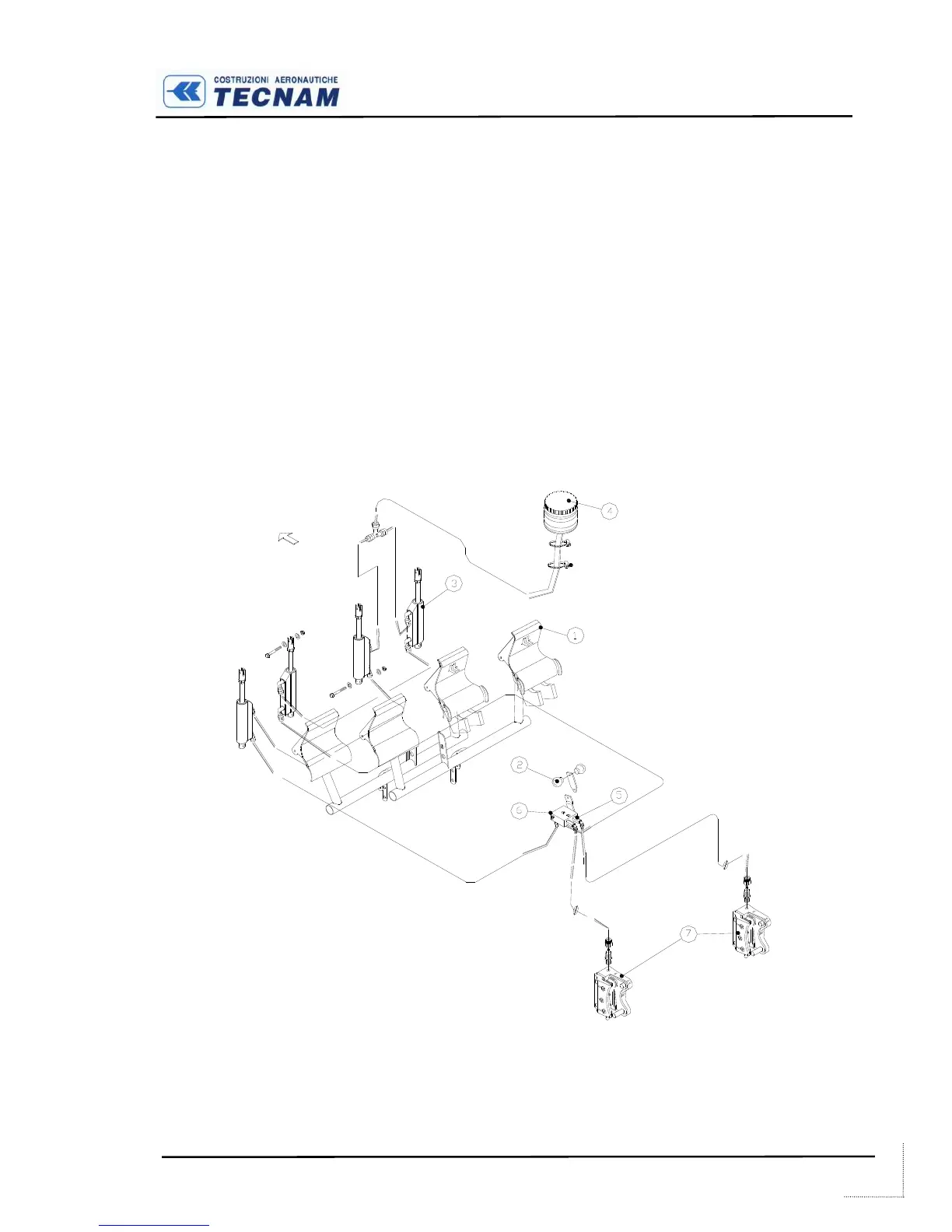

Figure 9-2 shows the brake system schematic diagram.
The left and right wheel brakes are independent systems. The system has a
reservoir (4) visible from a little window on the baggage compartment. The
reservoir is directly connected to the brake master cylinders (3). Two flexible
hoses connect the master cylinders on the co-pilot’s brake pedals to the master
cylinders on the pilot’s brake pedals.
The parking brake valve (6) is mounted on the floor of the fuselage, below the
seats and it’s activated by lever (2). Each main wheel has a brake disc (7).
C
C
C
C
FWD
Figure 9-2 Differential brake system
