FLIGHT MANUAL
Date: Issue 3: 25
th
May 2010
9-22
P92 - JS
S E C T I O N 9
SUPPLEMENTS
The figure 9-3 shows the central throttle control system.
The engine throttle lever is located on the left site and the choke lever is located on
the right site.
The levers friction is located on the lateral right site of the central throttle control
system.
T
H
R
O
T
T
C
A
R
B.
H
E
A
T
ON
OFF

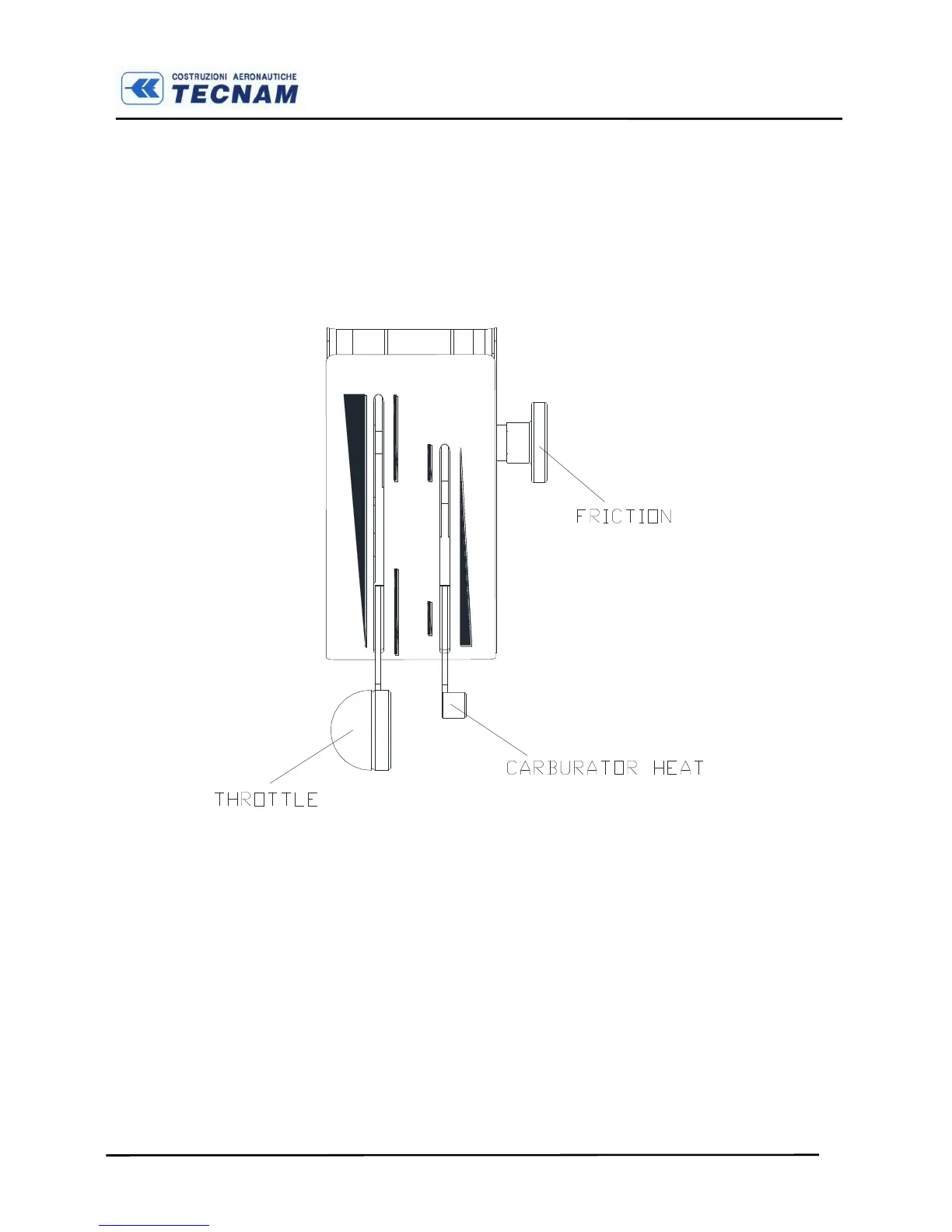

Figure 9-3 Central throttle control system
