11 PROBLEMS AND
RELATED SOLUTION
The operating personnel in charge of maintenance/repair
must scrupulously comply with the accident prevention
regulations in force in the country of destination of the
system.
11.1 Problems
The operating problems and their solutions for the MaxX
are described in detail in chapters 9 and 10.
12
DECOMMISSIONING
AND DISPOSAL
12.1
Decommissioning
If you decide not to use MaxX anymore, it is recommended
to make it inoperative by removing it from the
crane/trailer on which it is hooked.
12.2
Disposal
The user, according to the EU Directives or the laws in
force in his country, must take care of the demolition,
disposal and disposal of the various materials that make up
MaxX.
In the case of demolition of MaxX, safety precautions must
be taken to avoid risks associated with the dismantling of
industrial machinery, paying particular attention:
disassembly from the installation area
transport and handling
dismantling
separation of different materials
To carry out demolition and disposal it is necessary to
observe some basic rules to safeguard the health and the
environment in wich we live, paying particular attention to
the operations of separation, recycling or disposal of
materials, always reffering in any case to the National or
Regional Laws in force on the disposal of solid industrial
waste and toxic and harmful waste.
Plastic or non-metallic sheaths and elements in general
must be disassembled and disposed of separately.
13 SPARE PARTS
We suggest to contact the TECNOMAGNETE Service
Network to request spare parts according to the MaxX
model.
13.1
Spare parts

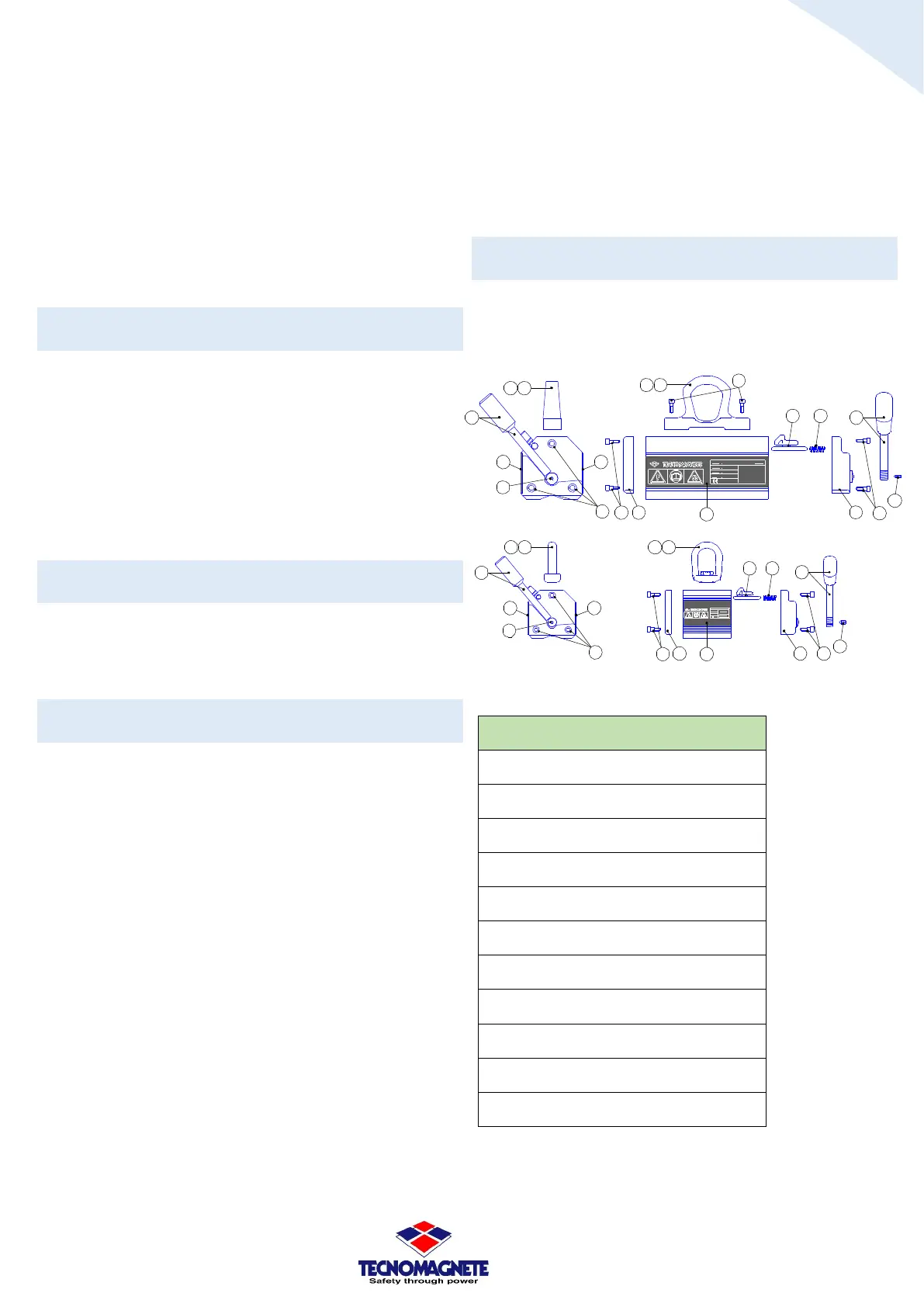

The following figures list the spare parts for the MaxX.
Fig.13.1A
Fig.13.1B
Description
1A_Load ring / 1B_Eyebolt
①
Screw UNI 5931 – 8.8
②
Pin lever (for lever lock)
③
Helical spring
④
Lever
(handle)
⑤
Cover
(handle side)
⑥
Cover
(opposite side of the handle)
⑦
Screw UNI 5931 – 8.8
⑧
Left plate
⑨
Right plate
⑩
Grain screw UNI 5927 – 8.8
⑪
