TECNOMOTOR 810 - Page 100

46
Fig.7
Fig.8
Fig.9

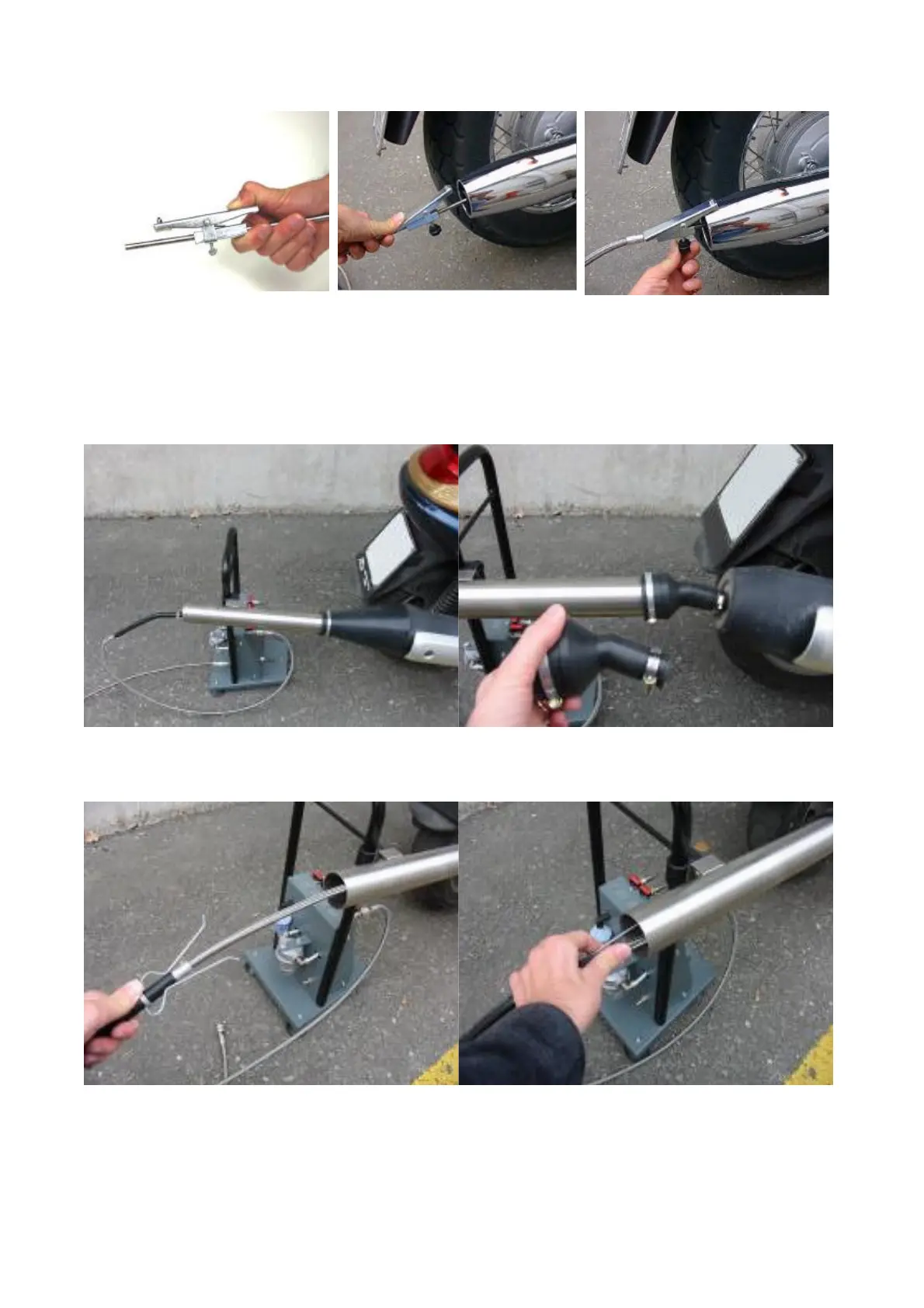

If this type of probe cannot be stably fixed, use a series of unions allowing to
extend the exhaust outlet, ensuring a good sealing (see Figure 10, Figure 11,
Figure 12 and Figure 13).
Fig.10
Fig.11
Fig.12
Fig.13
If not even the unions are sufficient, the operator can use the metal extension
(see Figure 14).
