TECNOMOTOR 810 - Connecting unions and probes

43
6 Connecting unions and probes

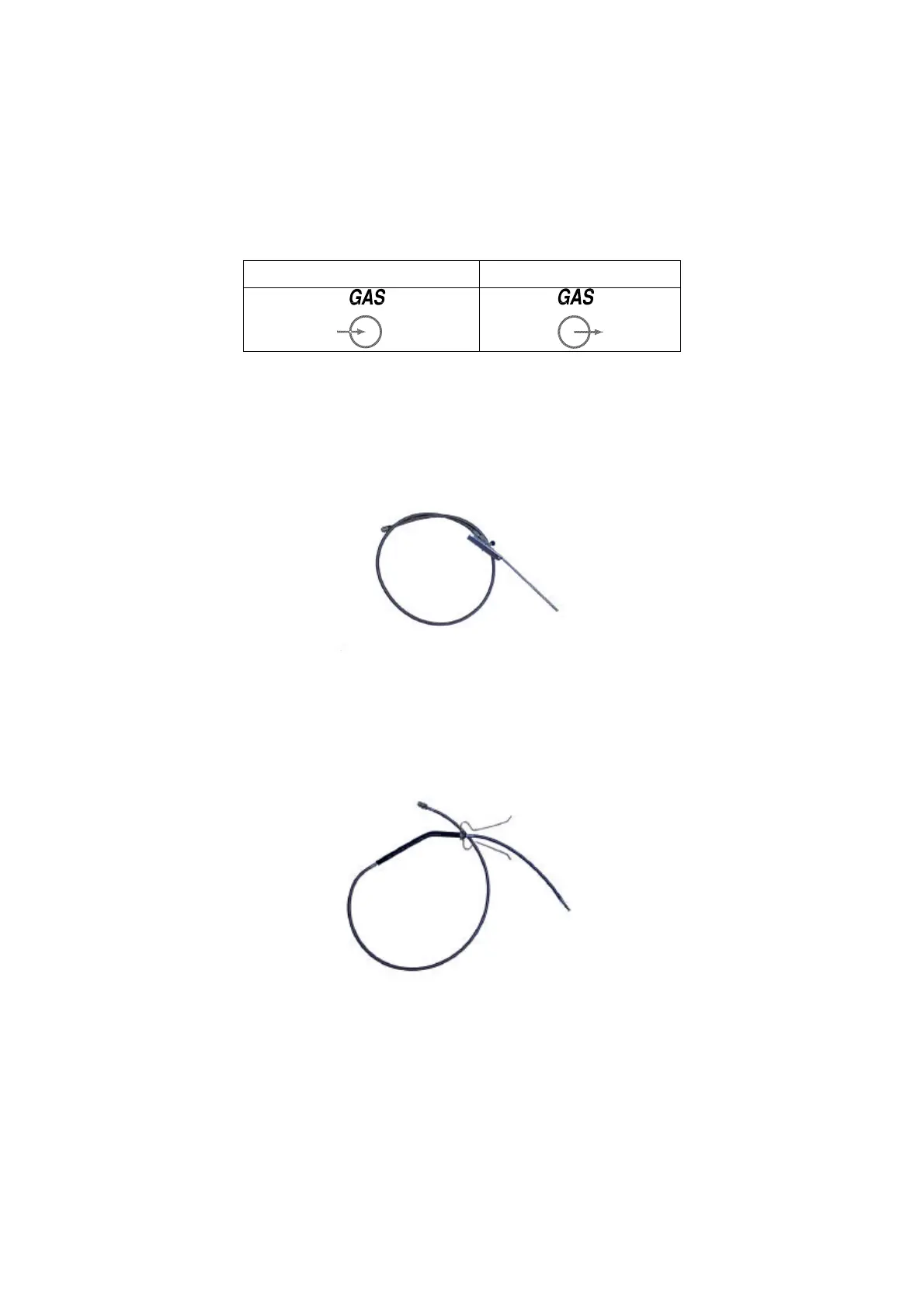

Connect the connection pipe between analyser and oil separator to the unions
marked with the symbols indicated in the table below.
GAS ANALYSER
OIL SEPARATOR
The probe kit consists of:
❑ Steel sampling probe with special clamp for fitting on exhausts for two-
stroke vehicles (see Figure 1)
Fig.1
❑ Steel sampling probe with flexible rod for fitting on exhausts for four-stroke
vehicles (see Figure 2)
Fig.2
❑ Kit with oil separation system with 4 connections for using several probes at
the same time (see Figure 3)
