44

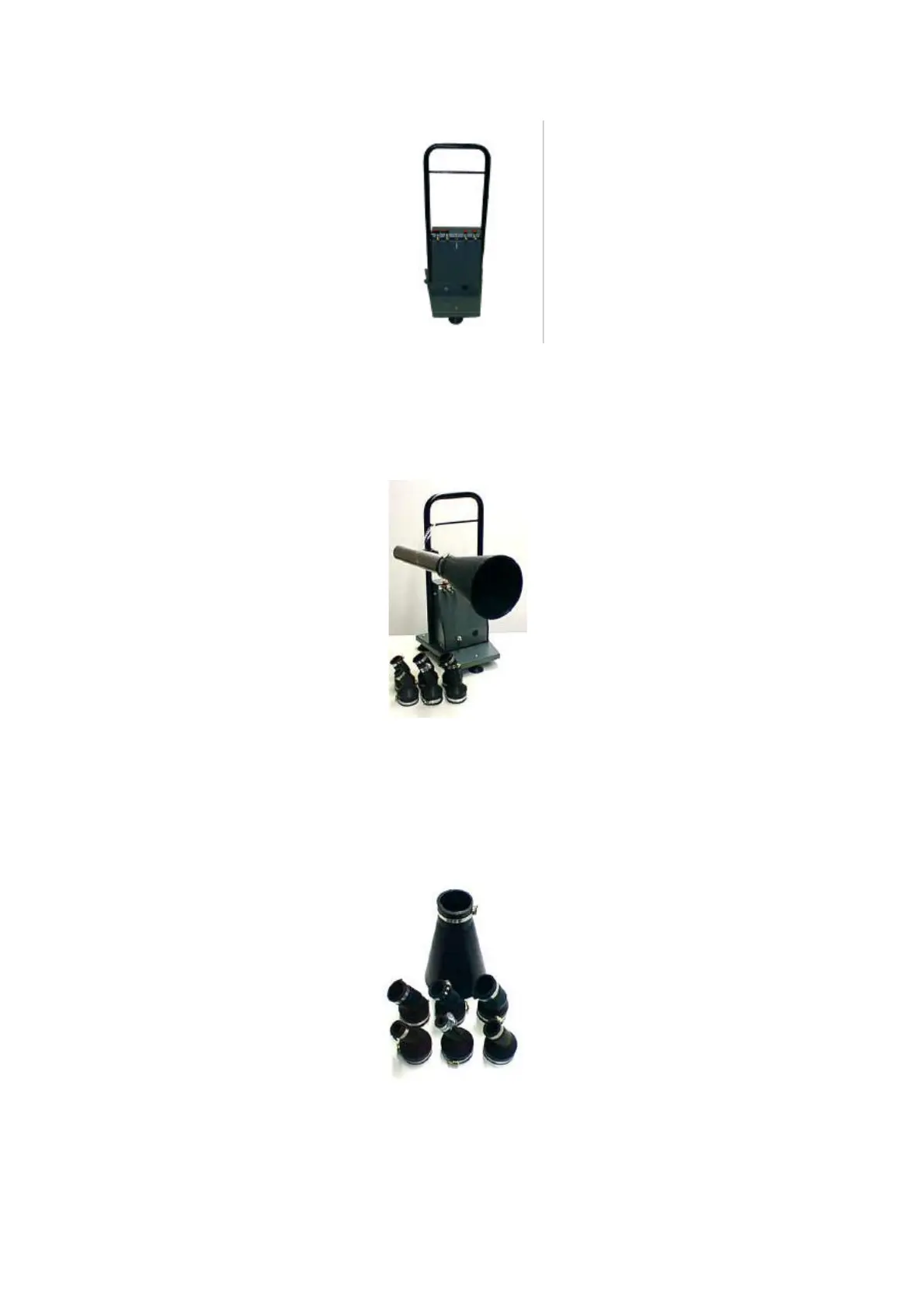

Fig. 3
❑ Extension kit for exhausts with no possibility of connection for the probes
(see Figure 4)
Fig.4
❑ Series of unions having different diameters for the connection between
exhaust and extension kit
(see Figure 5).
Fig.5
All probes are equipped with quick coupling unions, both for connection
between probe and oil separation system and for connection between oil
separation system and analyser.
