TEST
ON
OFF
LINE
BATTERY
INVERTER
BY-PASS
LOAD
14
15
16
17
18
19
8
910
11
12 13
7
3
4
6
5
+
-
1
2

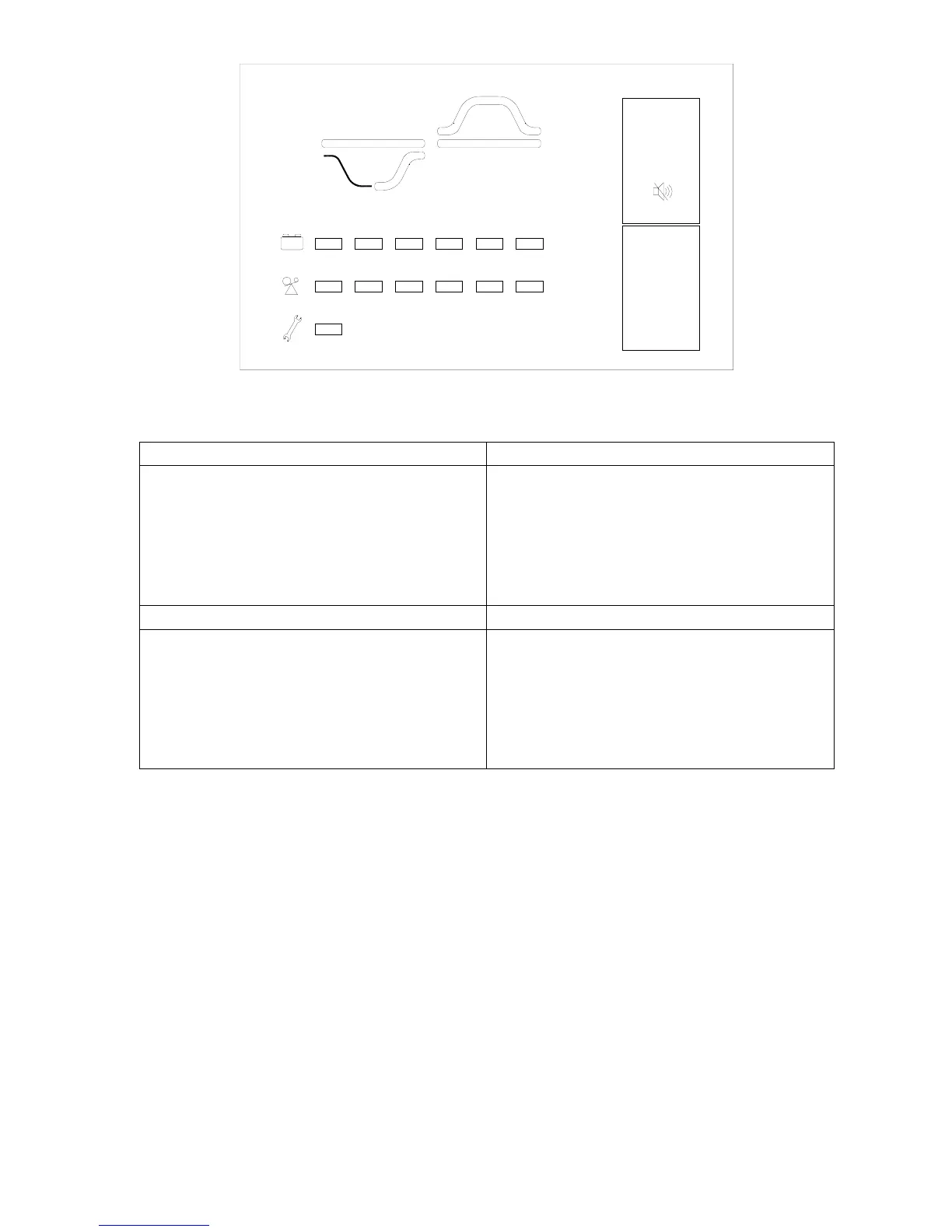

Figure 2 – Front panel
Front buttons LOAD level led bar
1 - ON/TEST/ALARM Button 8 – OVERLOAD led (red)
2 – OFF Button 9 - LOAD 100% led (blue)
10 - LOAD 80% led (blue)
11 - LOAD 60% led (blue)
12 - LOAD 40% led (blue)
13 - LOAD 20% led (blue)
Operating modes leds BAT. level led bar
3 – LINE led (blue) 14 - LOW BAT led (yellow)
4 – BATTERY led (blue) 15 - BAT 20% led (blue)
5 – BYPASS led (blue) 16 - BAT 40% led (blue)
6 – INVERTER led (blue) 17 - BAT 60% led (blue)
7 – FAULT led (red) 18 - BAT 80% led (blue)
19 - BAT 100% led (blue)
User’s manual 19 UPS EVO
