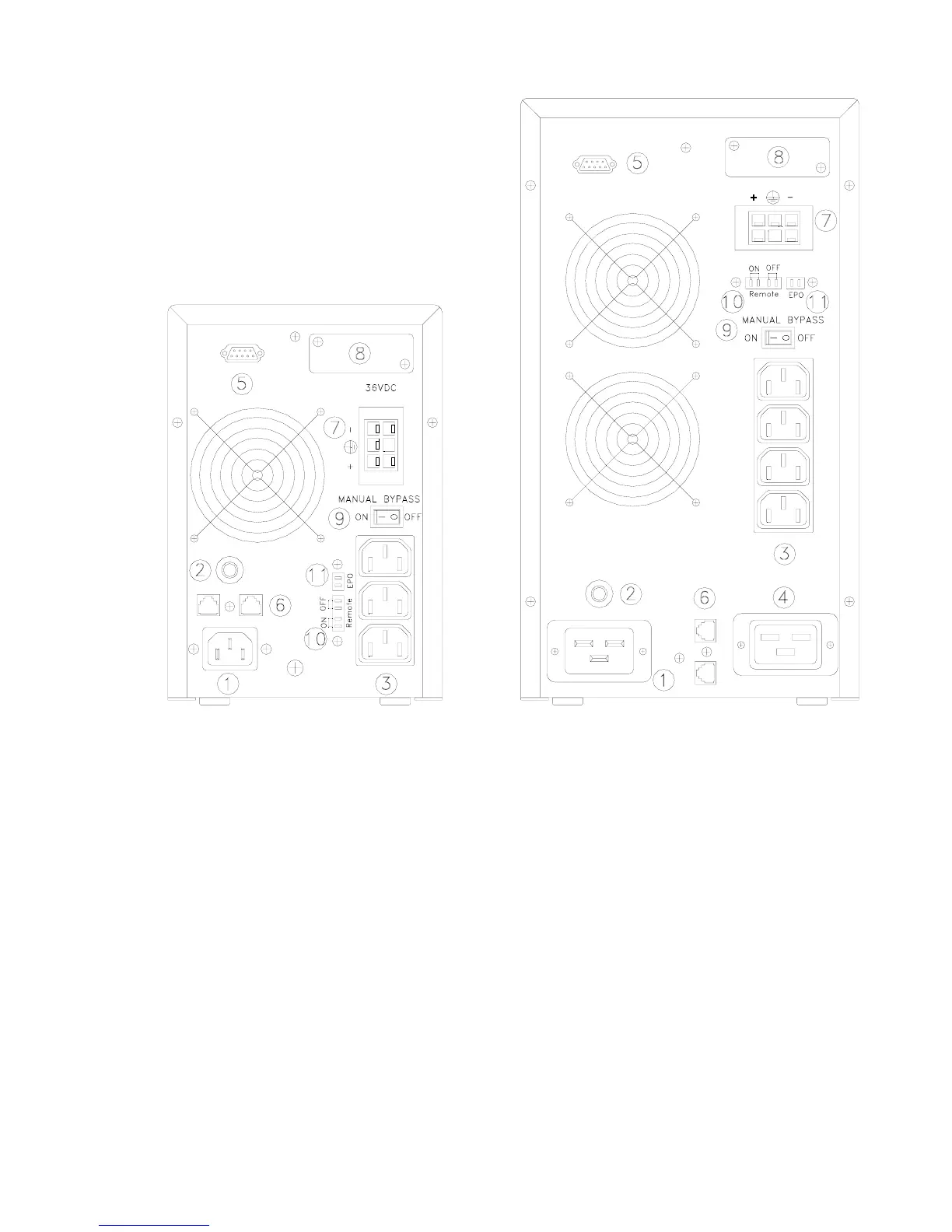

Figure 3 – Rear side
(On the left: EVO 1.0; on the right: EVO 2.0 and EVO 3.0)
1. Grounded AC Input socket
2. Input Circuit Breaker
3. Grounded output socket
4. Grounded power output socket (EVO 2.0 and EVO 3.0)
5. Computer Interface (RS-232)
6. RJ11/RJ45 IN/OUT plugs
7. Slot for external batteries connector.
8. Dty contacts board/Slot for SNMP adapter
9. Manual BYPASS switch
10. Remote ON/OFF contacts
11. EPO (Emergency Power OFF)
UPS EVO 20 User’s manual
