FLUXMASTER 50 INSTRUCTION MANUAL

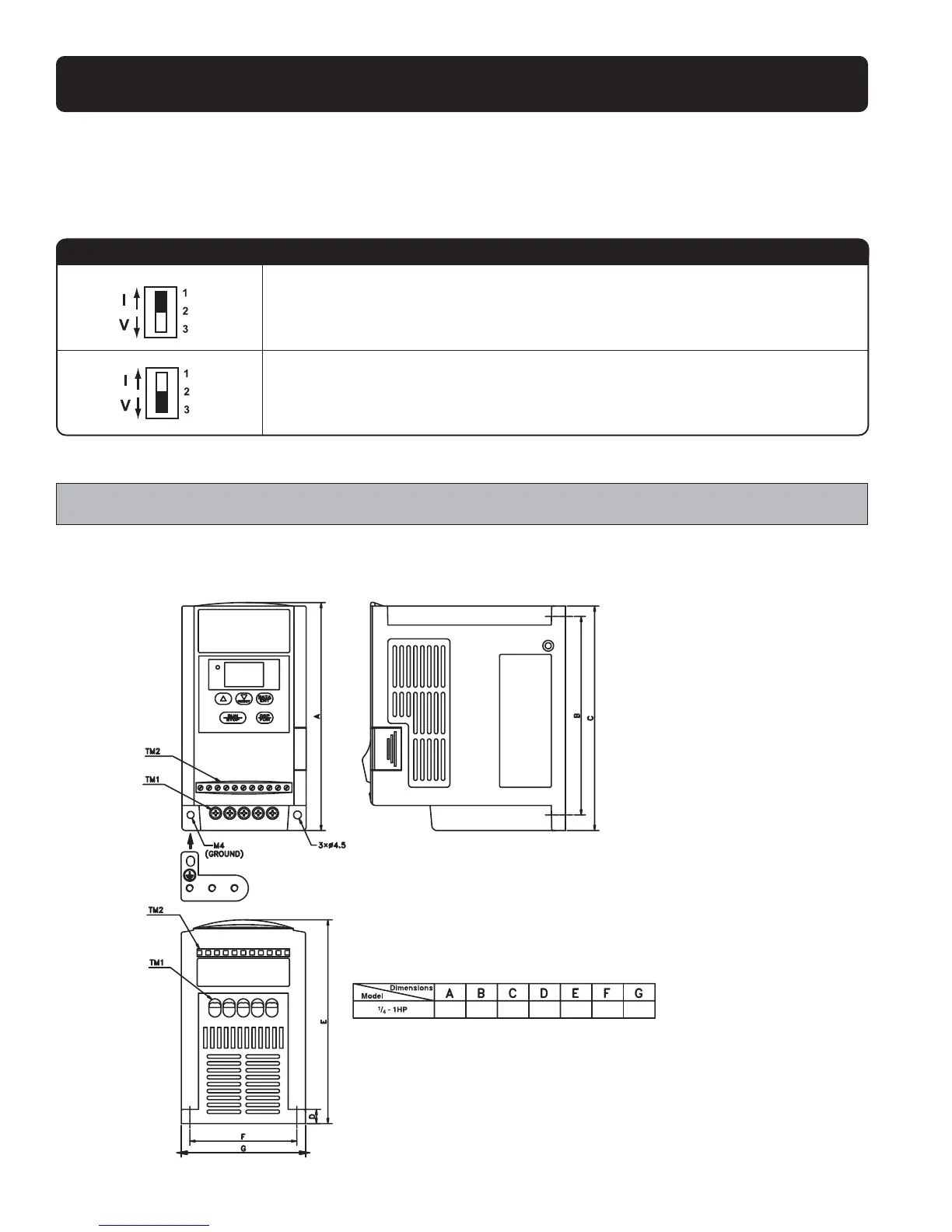

SW1 Function Description
Switch 1 External Signal Type
0 ~ 20mA analog signal (When F_11 is set to 1)
4 ~ 20mA analog signal (When F_11 is set to 2)
0 ~ 10VDC analog signal (When F_11 is set to 1)
2.5 Dimensions & Location of Terminal Block
115V 1/4 - 1HP, 230V 1/4 - 1HP models
NOTE:For safety reasons,we strongly recommend removing the M4 grounding
screw, then attach the enclosed "metal frame grounding terminal" on the same
location to make a grounding bar to ensure proper grounding.
