23
FLUXMASTER 50 INSTRUCTION MANUAL
INSTALLATION

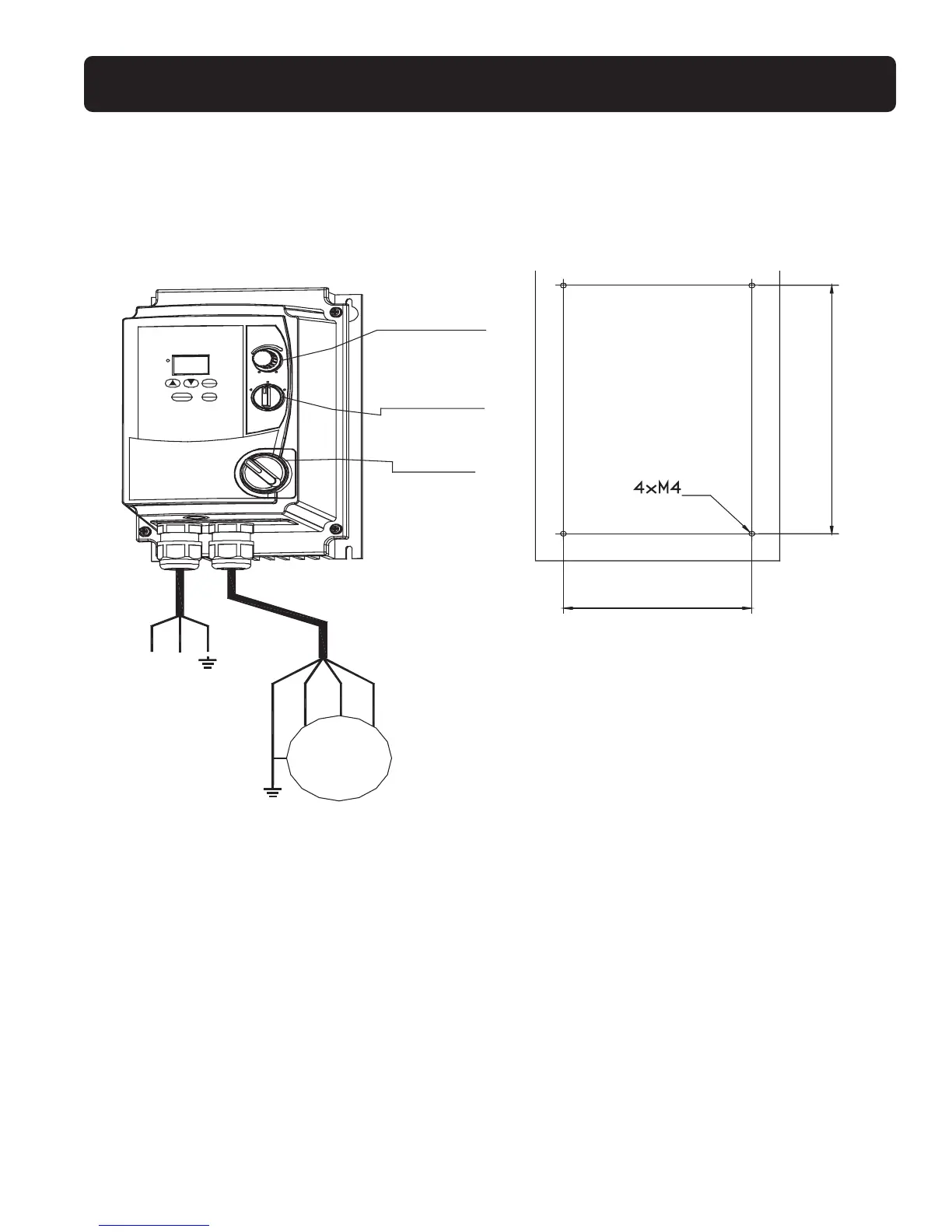

FM50 NEMA 4X (IP65 Indoor Duty) with operators (115V, 230V, 1/4 -1HP models)
NOTE :
1. Power switch,REV-0-FWD switch and potentiometer are only available for NEMA 4X units with operator devices
2. Power supply cable: #14 AWG (2.0mm
2
)
3. Motor cable: #16 AWG (1.25mm
2
)
4. Tightening torque values for terminals
(1). Power/Motor cable (plug-in) terminal: 4.34in-lb (5kg-cm)
(2). Remote control wire: 3.47in-lb (4kg-cm)
50/60 Hz
Single Phase
L1 L2
3 Phase
IM
T1 T2 T3
SWITCH
POWER
RES ET
RUN
STOP
Potentiometer
REV-0-FWD
ENT
DSP
FUN
DATA
SWITCH
7.83" (198.80mm)
4.86" (123.40mm)
