INSTALLATION

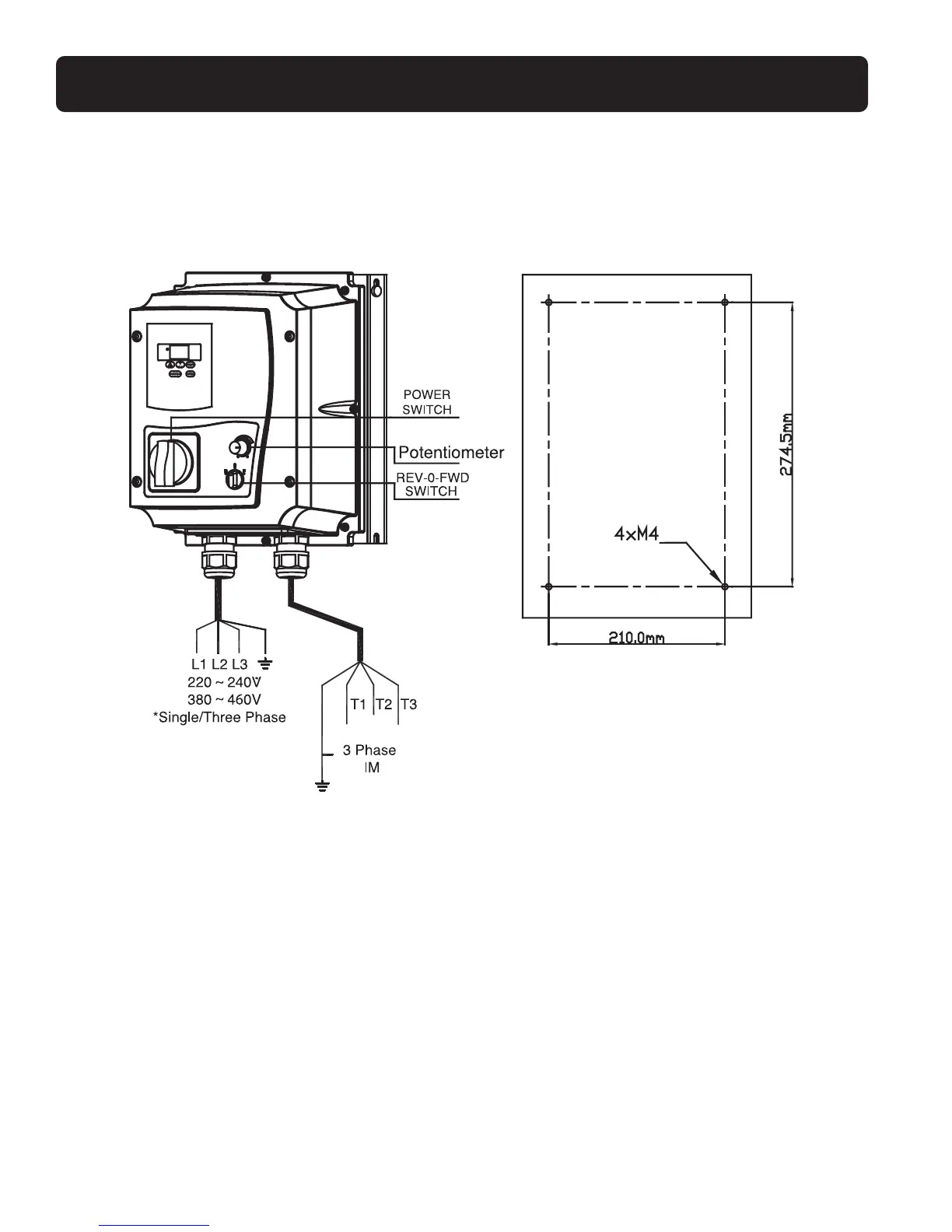

FM50 NEMA 4X (IP65 Indoor Duty) with operators (230V 2, 3HP, 460V 1 - 3HP models)
NOTE :
1. Power switch, REV-0-FWD switch and potentiometer are only for NEMA 4X units with operator devices.
2. Power supply cable: 230V #12 AWG (3.5mm
2
); 460V #16 AWG (1.25mm
2
)
3. Motor cable:230V #14 AWG (2.0mm
2
); 460V #16 AWG (1.25mm
2
)
4.Tightening torque values for terminals:
(1). Power/Motor cable (TM1,TM3) Terminal: 6.94in-lb (8kg-cm)
(2). Remote control wire: 3.47in-lb (4kg-cm)
(3). Outer cover (M4): 6.94in-lb (8kg-cm)
*Models FM50-202-N4FS & FM50-203-N4FS with operator devices are single phase input only.
