CONNECTION
FM50 NEMA 4X (IP65 Indoor Duty) (230V 2,3HP, 460V 1 -3HP models)
MOUNTING
NOTE:
For ALL MODELS WITH FILTERS, additional items will be found inside the box including: QTY 1 of EMC waterproof conformed
(IP65) ferrite core; QTY 1 of metal fastener; QTY 1 of MF Zin 5-C screw.
CAUTION

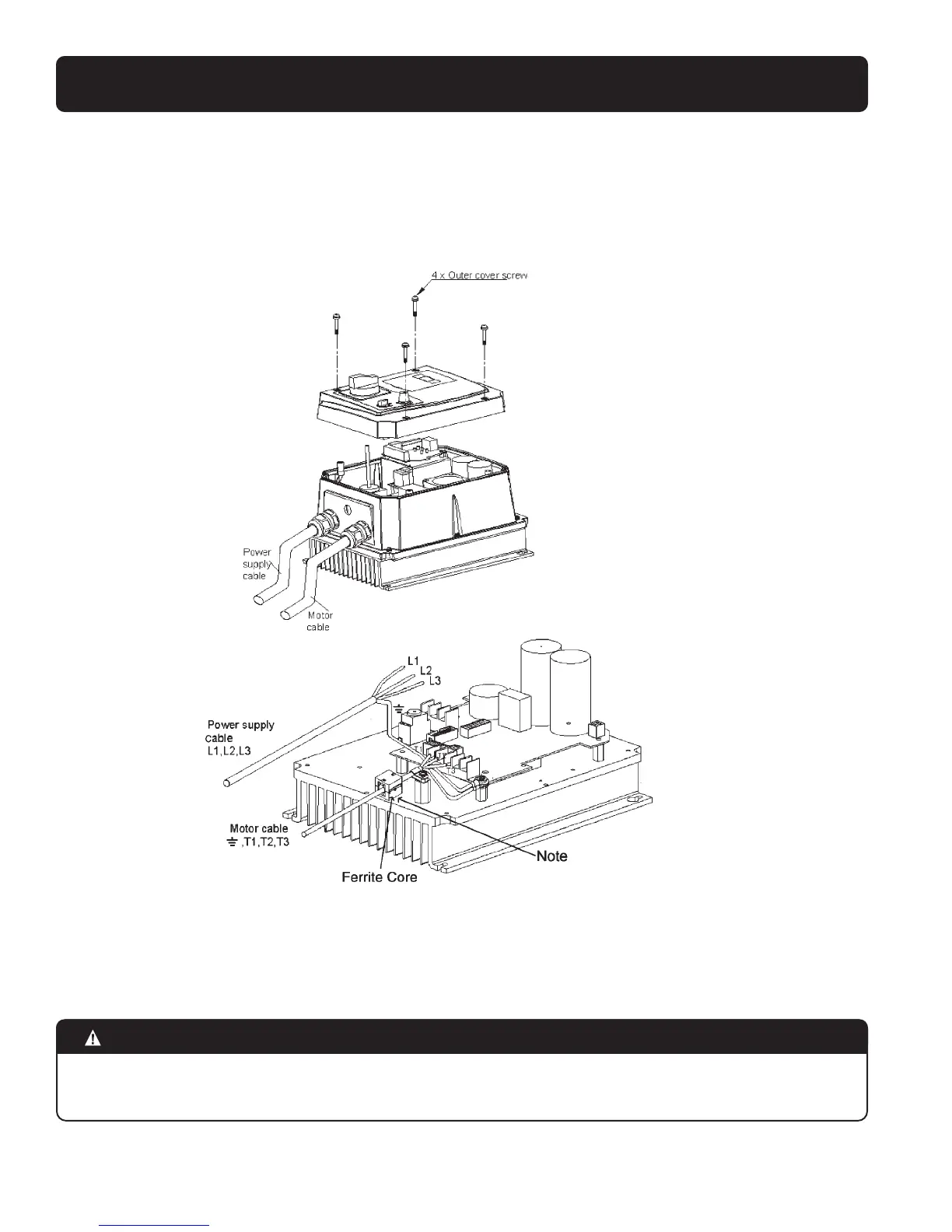

If the EMC regulation must be met, constrain the motor cables with the ferrite core onto the motor cable outside the plastic
enclosure as indicated in the above diagram.
Please Note: The length of the motor cable CANNOT exceed 5M under EMC regulation.
30
FLUXMASTER 50 INSTRUCTION MANUAL
