38
FLUXMASTER 50 INSTRUCTION MANUAL

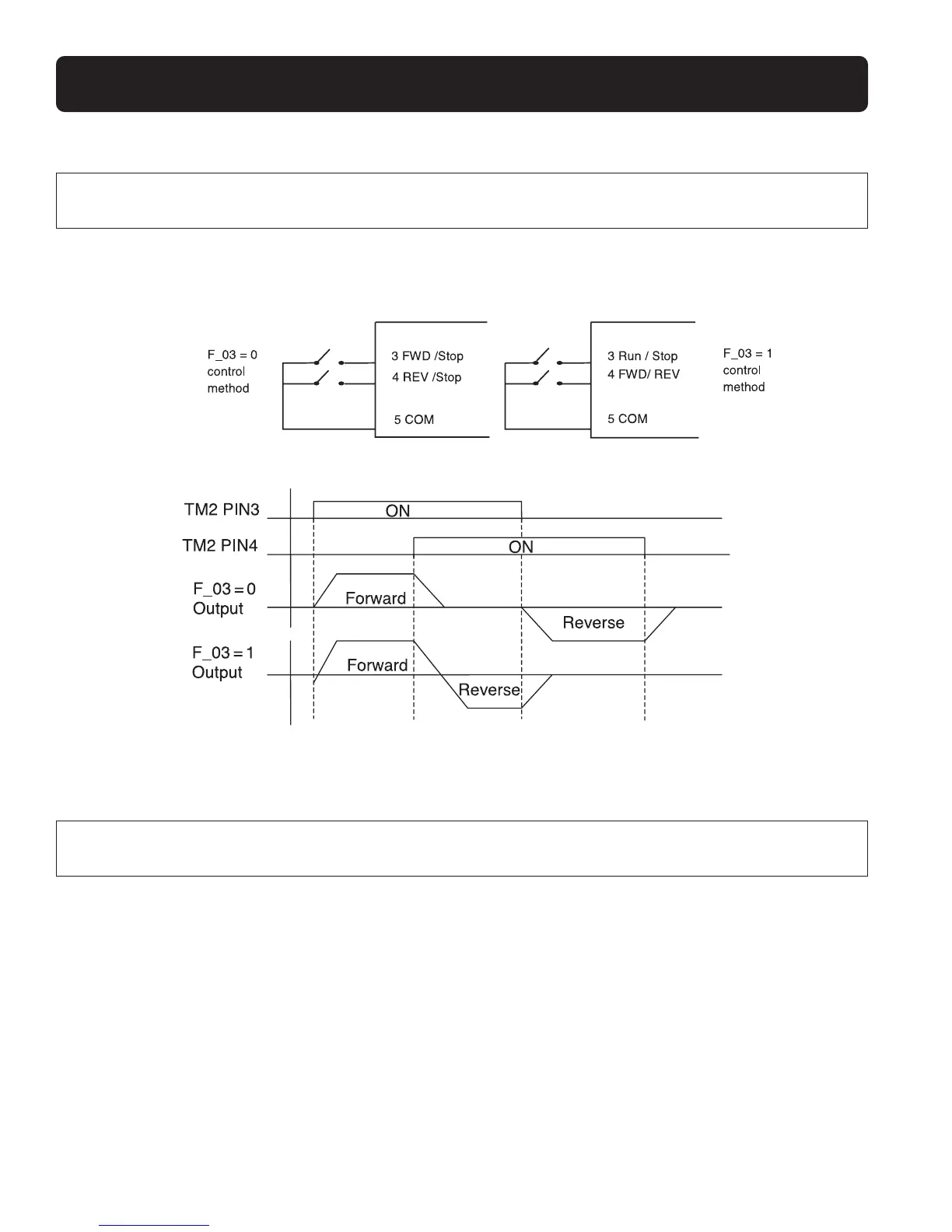

F_03: Operation Mode Selection = 0 : Forward / Stop, Reverse / Stop
1: Run / Stop, Forward / Reverse
NOTE 1: F_03 takes effect only when F_10 = 1 (external operation control)
Note: Reverse command is ignored when F_22 = 1 (Reverse lockout)
F_04: Motor Rotation Direction Setting = 0: Forward
1: Reverse
Although there is no Forward / Reverse pushbutton on the digital control panel, it is possible to adjust forward / reverse function
by changing the F_04 setting.
NOTE: When F_22 = 1:Reverse is disabled.F_04 cannot be set to 1.
The keypad indication will display "LOC".
NOTE: F_04 takes effect only when F_10 = 0 (Keypad start/stop control mode)
