FLUXMASTER 50 INSTRUCTION MANUAL

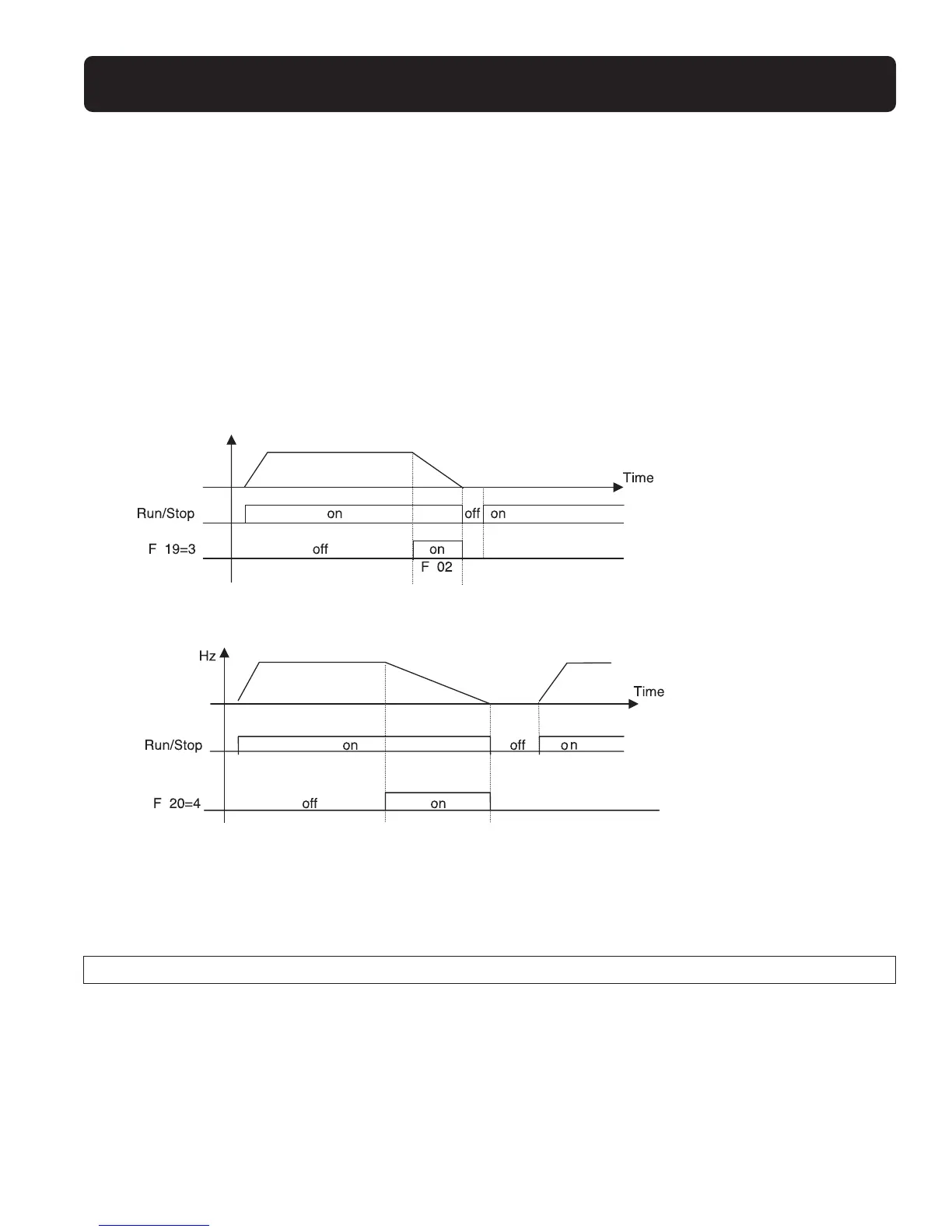

3. F_19, F_20 = 3: External Emergency Stop
When the external emergency stop signal is activated,the AC drive proceeds to decelerate and stop, (ignoring the stopping
method setting of F_14).The AC drive E.S. light will flash after stopping.After the emergency stop signal is deactivated,turn the
RUN switch OFF and then ON again to cycle it in the terminal mode.(F_10 = 1) Or press the RUN key in the keypad mode (F_10 =
0).The AC drive will then resume operation and restart. If the emergency stop signal is removed before the AC drive stops,the AC
drive will still execute the emergency stop.
4. F_19, F_20 = 4: External Base Block (Immediate Shut Down)
When the external base block signal is activated, the AC drive output will be immediately shut off (ignoring the stopping
method setting of F_14) and flash b.b. Light.After the base block signal is deactivated, turn the RUN switch OFF and then ON
again (F_10 = 1) or press the RUN key (F_10 = 0), the inverter will restart from the original starting frequency.
5. F_19, F_20 = 5: Auto Reset when AC drive faults.
F_21: Multi-Function Output Terminal Control = 1 ~ 3
1. F_21 = 1: Run mode signal
2. F_21 = 2: At Frequency Speed Signal
3. F_21 = 3: Fault signal
Terminals 1 and 2 of TM2 are activated for the following faults: CPF, OL1, OL2, OCS, OCA, OCC,Ocd , Ocb ,OVC , LVC , OHC.
Refer to Section 4 for information on faults.
