TECO JSDAP-100A3 User Manual

5-24
 Automatic gain 1&2 switch condition (by torque command ).
When torque command is less than Cn021, Gain 1 is selected.
When torque command is greater than Cn021, Gain 2 is selected
When Gain 2 is active and torque command becomes less than Cn021 system will automatically switch back
to Gain 1 the switch time delay can be set by Cn020.

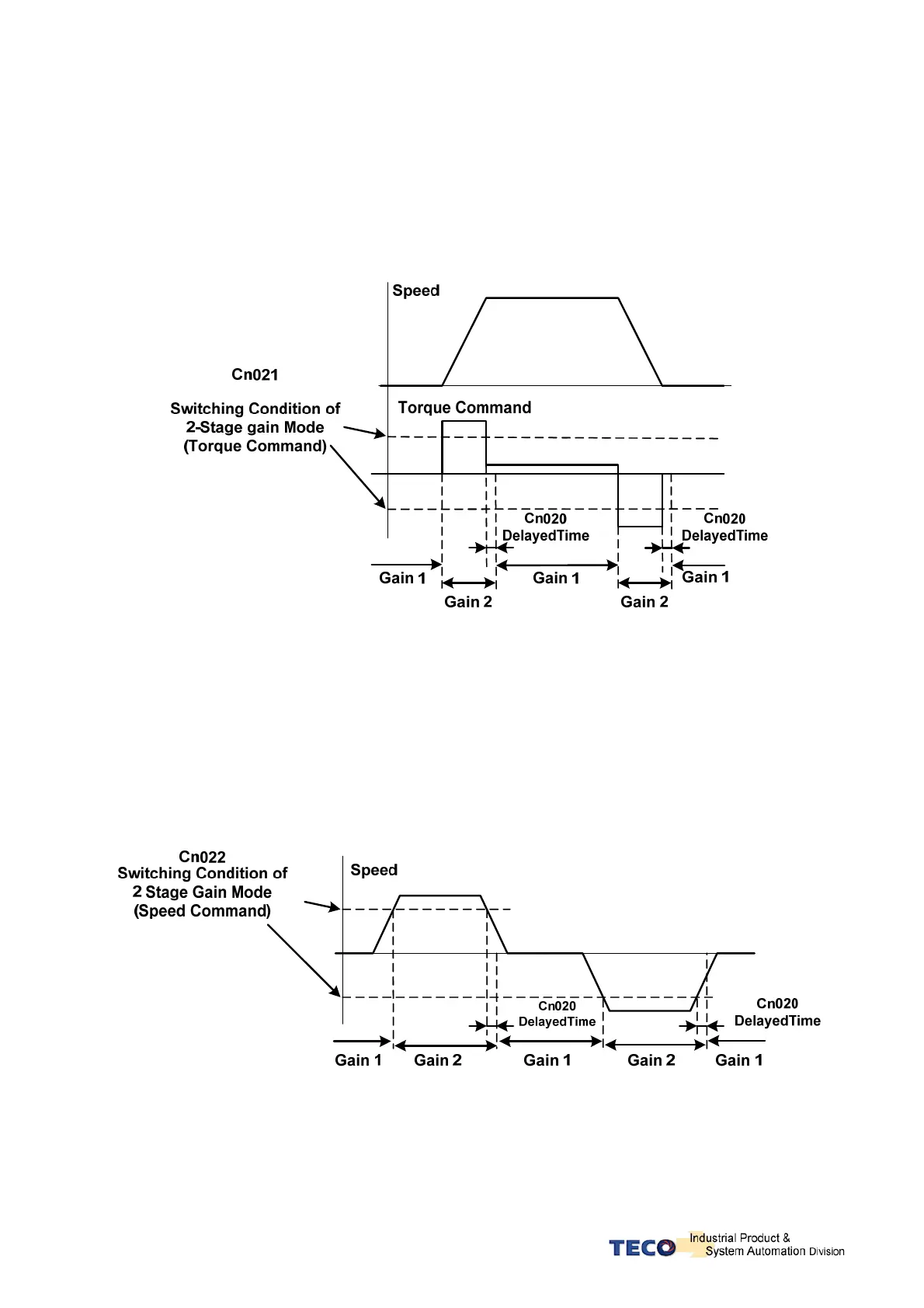

As show in the diagram below:
 Automatic gain 1&2 switch condition (by Speed command).
When speed command is less than Cn022 Gain 1 is selected.
When speed command is greater than Cn022 Gain 2 is selected.
When Gain 2 is active and speed command becomes less than Cn022 system will automatically switch back
to Gain 1 the switch time delay can be set by Cn020.
As show in the diagram below:
