TECO JSDAP-100A3 - Tool Turret Mode Setting Flow Chart

5-80

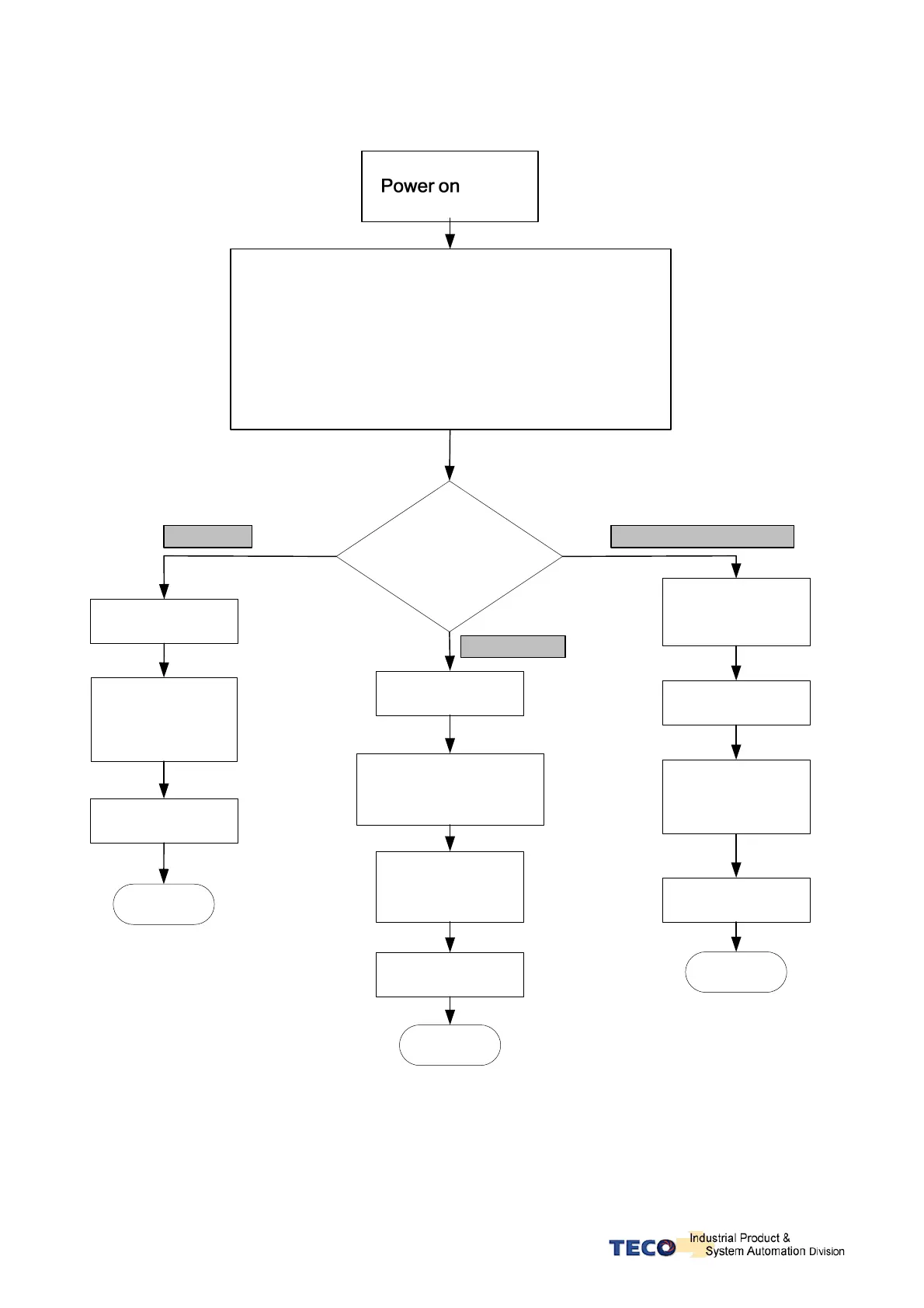

5-7-3 Tool Tturret Mode Setting Flow Chart
Cn030
Parameter setting
Pn313(Acc/Dec)
Pn327(Rotation speed of tool turret switching)
Pn324(Total number of tool turret)
Pn326(Reduction Gear Rate for CNC Tools Turret)
qn501~qn507(Rigidity Setting)
Control mode
swithing
(MDC 1)(MDC 2)
Homing
Position Trigger
(PTRG)
Tool turret
position displays
(DO1~4)
In Position
(INP)
END
JOG mode
Position Trigger
(PTRG)
Rotated to next
tool turret number.
Tool turret
position displays
(DO1~4)
In Position
(INP)
END
Auto-selection mode
Tool turret
selection
(Pos1~4)
Position Trigger
(PTRG)
Tool turret
position displays
(DO1~4)
In Position
(INP)
END
