TECO JSDAP-100A3 - 2-3 Typical Circuit Wiring Examples

2-27
2-3 Typical Circuit Wiring Examples

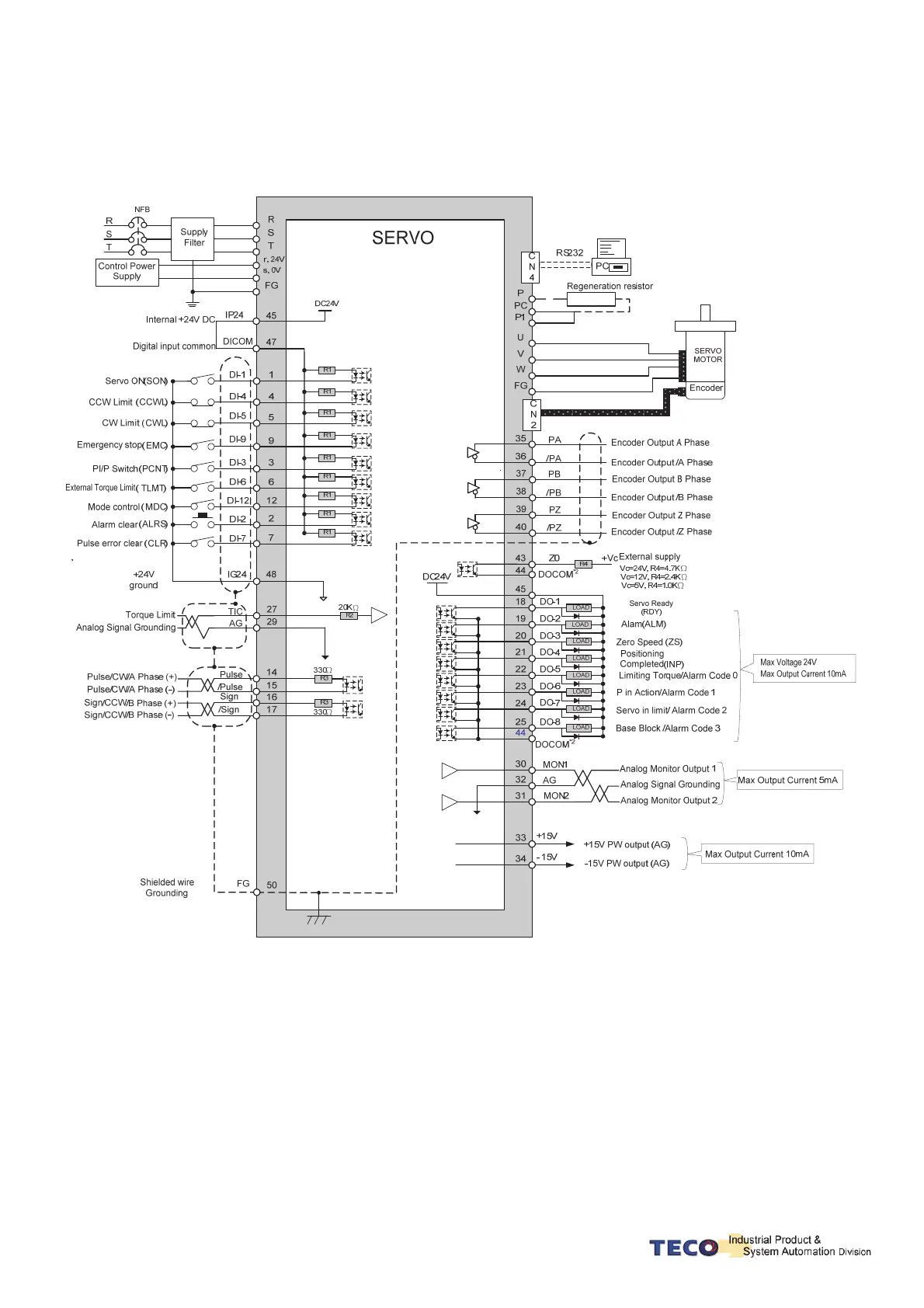

2-3-1 Position Control Mode (Pe Mode) (Line Driver)
Notes: 1. Pe mode =External pulse positioning command
2. DOCOM means common port of digital input
(DOCOM must connect to IG24 when using internal power supply)
