Challenger Series Installation and Quick Programming Manual 11
Installing the control panel
See Figure 4 below for overall details of a TS1016 or TS1016SE Challenger
panel installed in a TS0307 Universal Enclosure.
See Figure 5 on page 12 for overall details of a TS1016T Challenger panel and
240 VAC mains transformer installed in a TS0307 Universal Enclosure.
See Figure 6 on page 13 for overall details of a TS1016LE Challenger panel
installed in its enclosure.

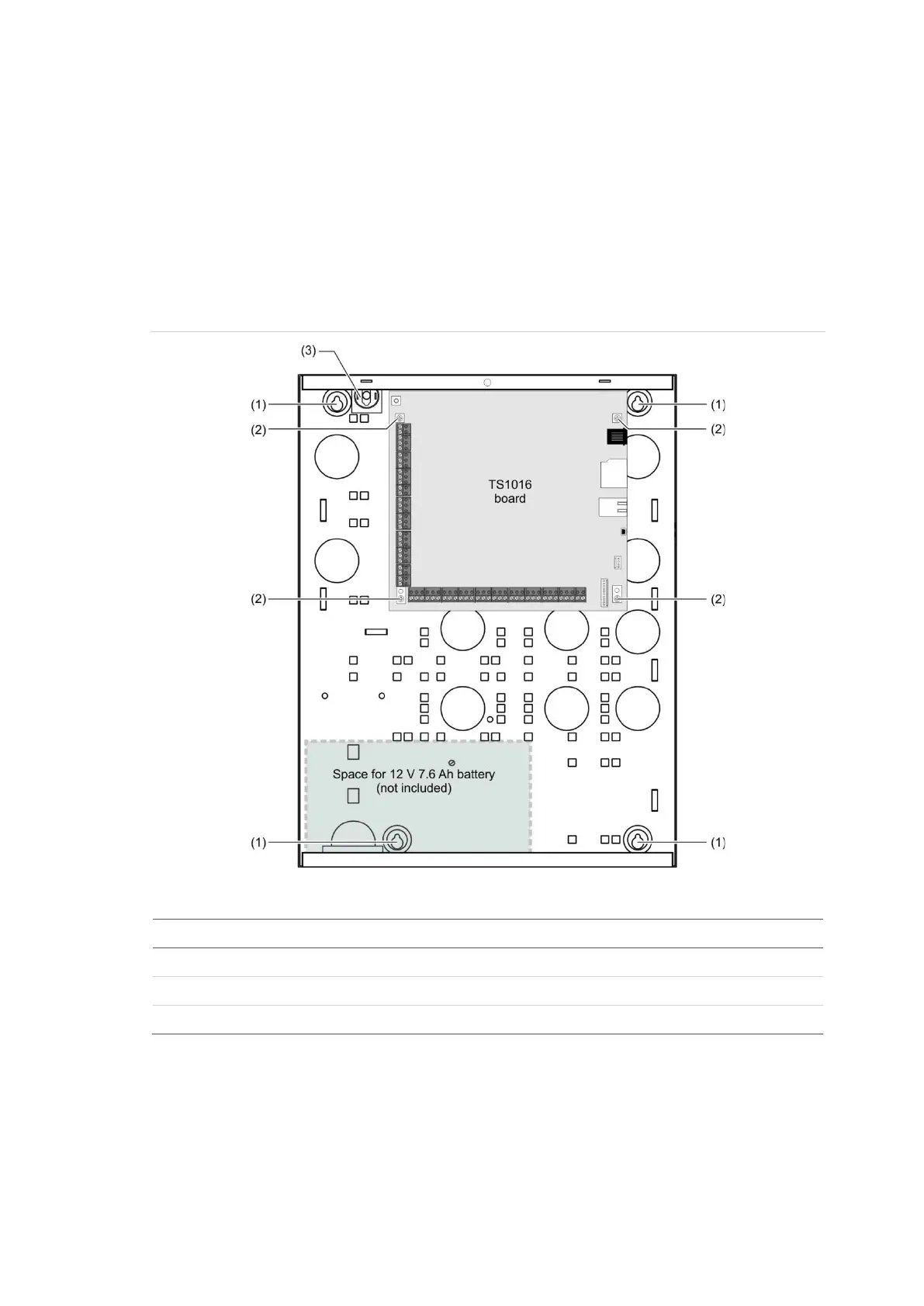

Figure 4: Challenger panel board mounted in enclosure (models TS1016 or TS1016SE)
Figure 4 legend
Item
Description
1.
Enclosure mounting points
2.
Board mounting points
3.
Location of tamper switch
