Connecting NAC in IP Direct mode
Firstly, connect CTPlus to the NAC using USB by following these steps:
1. Connect the NAC to the CTPlus computer using a USB cable.
2. In CTPlus, click the Panels button on the Panel programming ribbon
tab to open the Panels form.

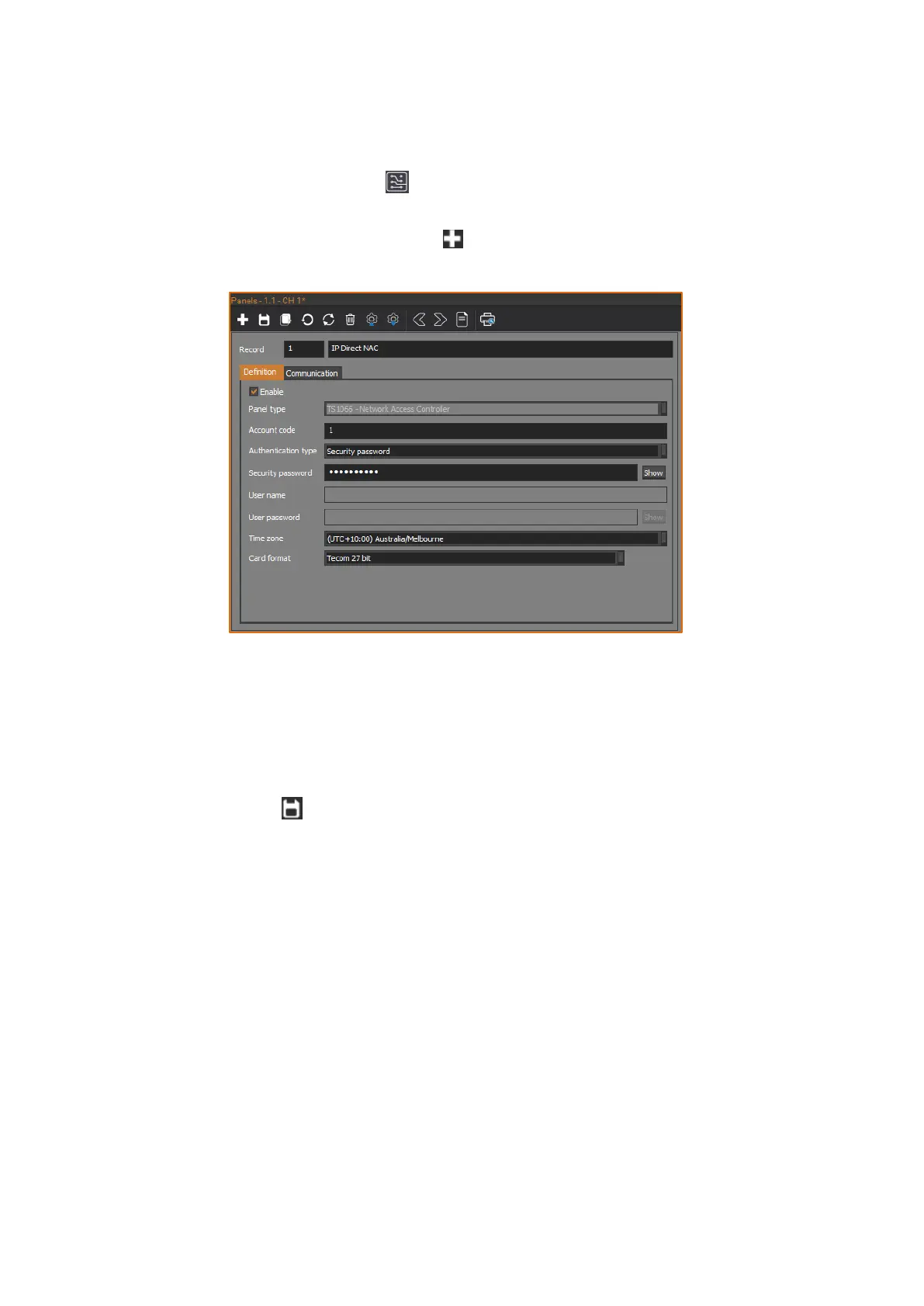

3. On the Panels form, click the New button in the toolbar to add a new
panel record.
1. Enter a description for the NAC connection in the Record description field.
2. On the Definition tab, enable the panel connection by ticking the Enable
check box.
3. Set the Panel type to be TS1066 - Network Access Controller.
4. Set the Time zone and Card format fields as required.
5. Click the Save button in the toolbar to save the NAC panel record.
CTPlus will connect to the NAC via USB.
CTPlus automatically creates a new DGP record associated with the NAC (DGP
number 16), allowing you to configure the options for the NAC. See Status and
control section for more details depending on the operating mode of NAC.
If desired, you can set up IP communications on the NAC and reconnect CTPlus
to the NAC using IP instead of USB. See the Programming IP communications
section on page 38.
