IP Direct mode are numbered in the range to 1 to 18. If the Controller type is V8
Door/Lift Controller, then four doors or lifts will be added starting from the number
in this field.
Result
The field shows the results of adding the door or lift controller and its doors or
lifts.
Programming hardware options
Hardware options for a door are configured on the Hardware tab of the
Doors/Lifts form.

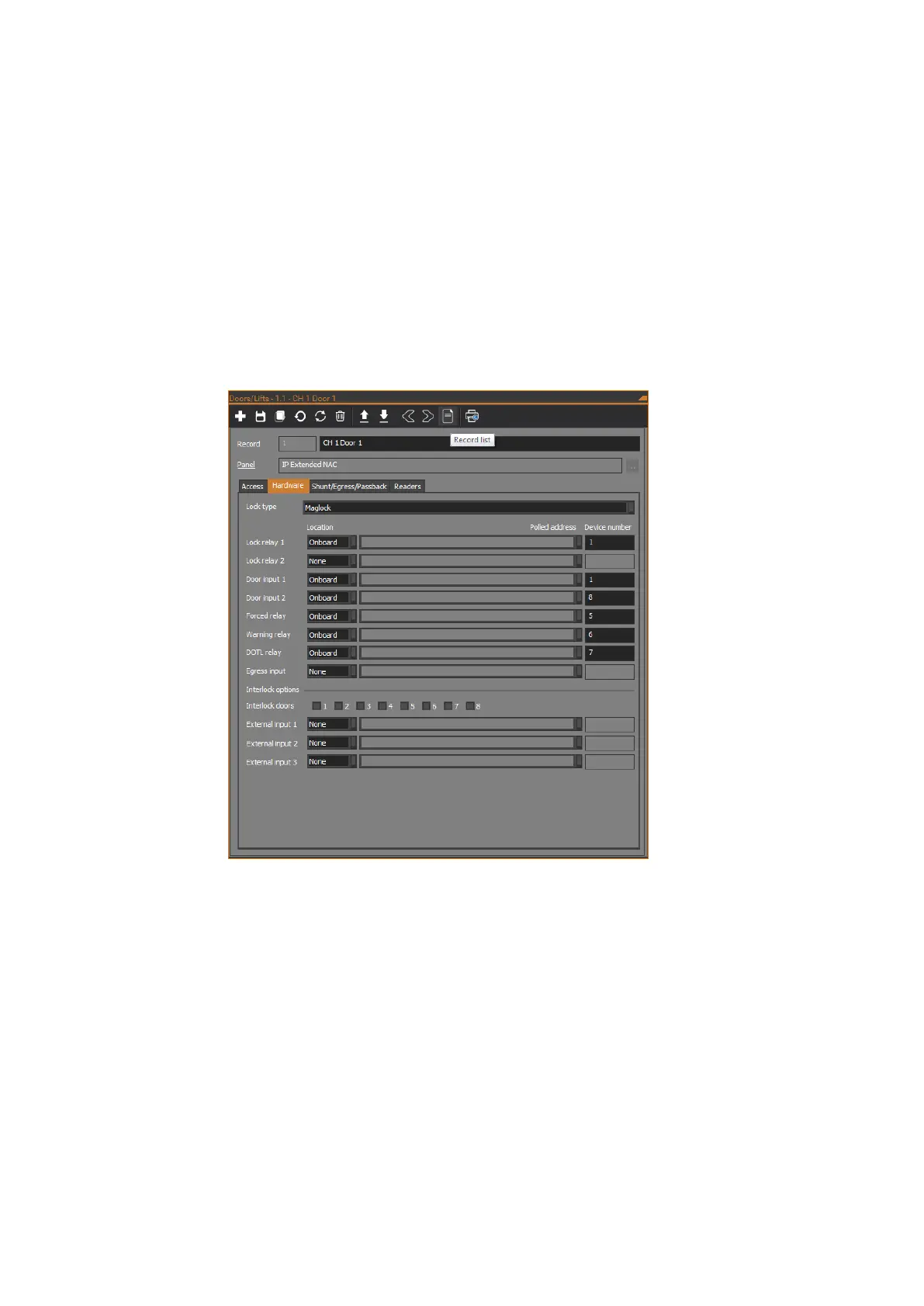

The following figure shows the Hardware tab of the Doors/Lifts form:
Lock type
To support simple programming of complex door operation, the NAC has various
lock types, with associated inputs, relays and timers. The lock type determines
which inputs and relays are used and how they are used.
The lock types are:
Strike
Maglock
