Betriebsanleitung/Operating manual
F7301/F73C1/F73S1
www.tecsis.de BD_BE 990 c 29
Type Model
Signal
Power supply
S# Product no.
UB+/S+ Pin assignment – power supply + / signal +
0V/S- Pin assignment – power supply - / signal -
UR+/UR- Relay (SIL-shift)
S-Test SIL-Shift

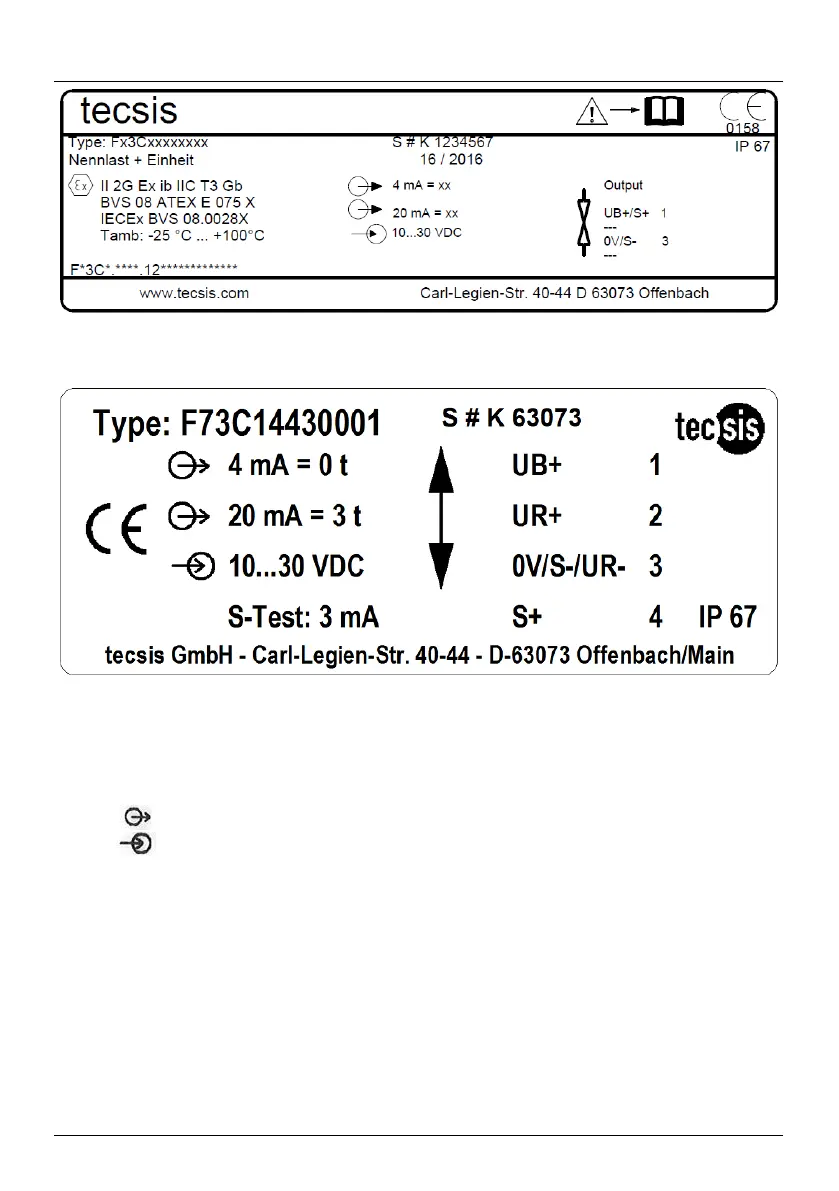

Fig. 2 Name plate Atex version acc. EN 60079:0-2012: Ex ib acc. EN 60079-11:2012 -
1x connecting plug –output signal 4…20 mA
Fig. 3 Name plate version SIL-3 acc. EN 62061:2005 - 1x connecting plug –
output signal 4…20 mA
