Betriebsanleitung/Operating manual
F7301/F73C1/F73S1
34 BD_BE 990 c www.tecsis.de

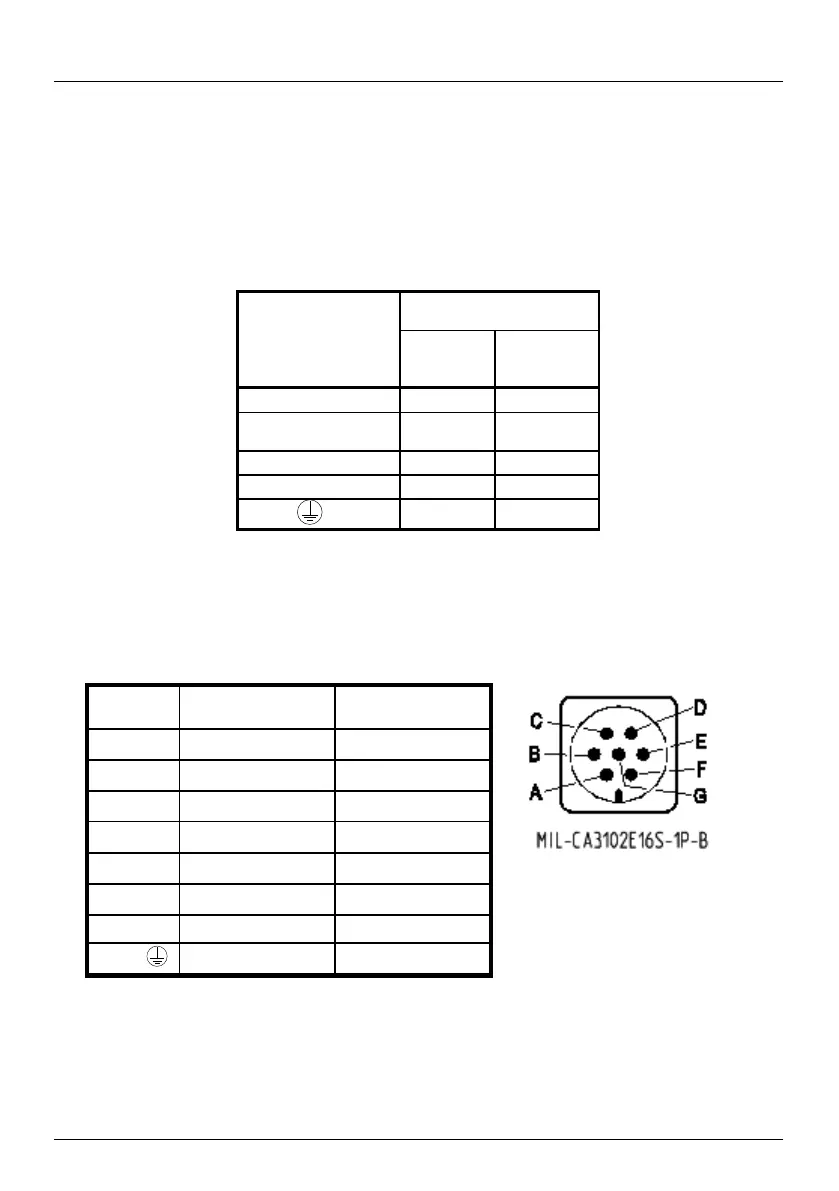

Connection assignment analog signal redundant opposing 7.4
2 round connectors option, for example, in combination with ELMS1
overload protection (F73S1). Version acc. the requirements for func-
tional safety acc. Machinery Directive 2006/42/EG.
Round connector M12x1, 4 pin
Connection assignment analog signal with MIL connector 7.5
4…20 mA/
20…4 mA (redundant)
Round
connector
1
Round
connector
2
Power supply: UB+
1
1
Power supply:
0V/UB-
3 3
Signal: channel 1
4
-
Signal: channel 2
-
4
Shield
Housing Housing
MIL mA/V 3-wire mA/V 2-wire
A
UB+ Channel 1
UB+/S+ Channel 1
C
0V / S- Channel 1
0V / S- Channel 1
D
S+ Channel 1
UB+/S+ Channel 2
B UB+ Channel 2
-
E 0V / S- Channel 2
-
F
S+ Channel 2
0V / S- Channel 2
G
- -
Shield
Housing Housing
