Tecsis F7301 - Connection Assignment Canopen

Betriebsanleitung/Operating manual
F7301/F73C1/F73S1
www.tecsis.de BD_BE 990 c 35
Connection assignment CANopen
®
7.6

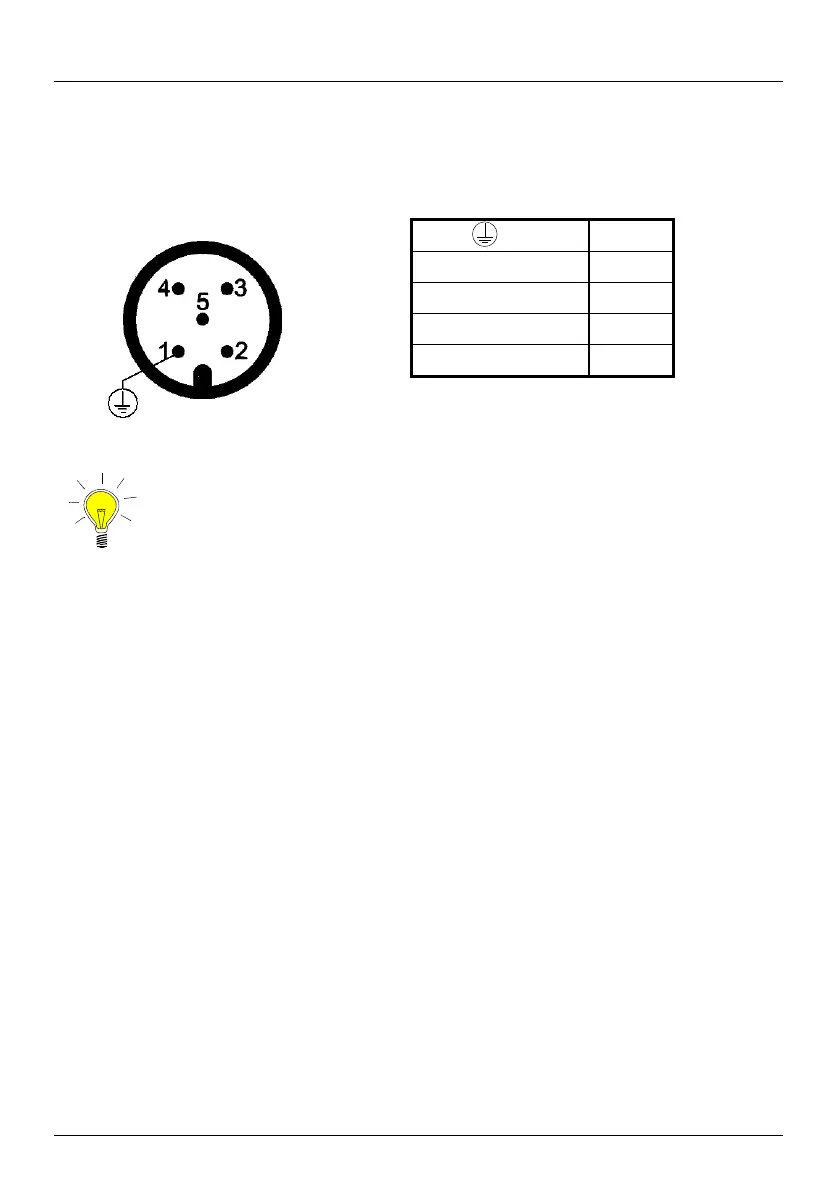

Round connector M12x1, 5 pin
The cable shield is connected to the GND of the tension link.
The shield of the accessory cables is connected to the knurled
nut and therefore the GND of the tension link. Only shielded
and low-capacity cables must be used for extending. The
allowed maximum and minimum lengths of the cable are speci-
fied in the ISO 11898-2. The shield must also be properly
connected.
Shield
1
UB+ (CAN V+) 2
UB- (CAN GND) 3
Bus-Signal CAN-High 4
Bus-Signal CAN-Low 5
