455kHZ AM IF OUTLET
LINE OUT SOCKETS
LINE-IN SOCKET

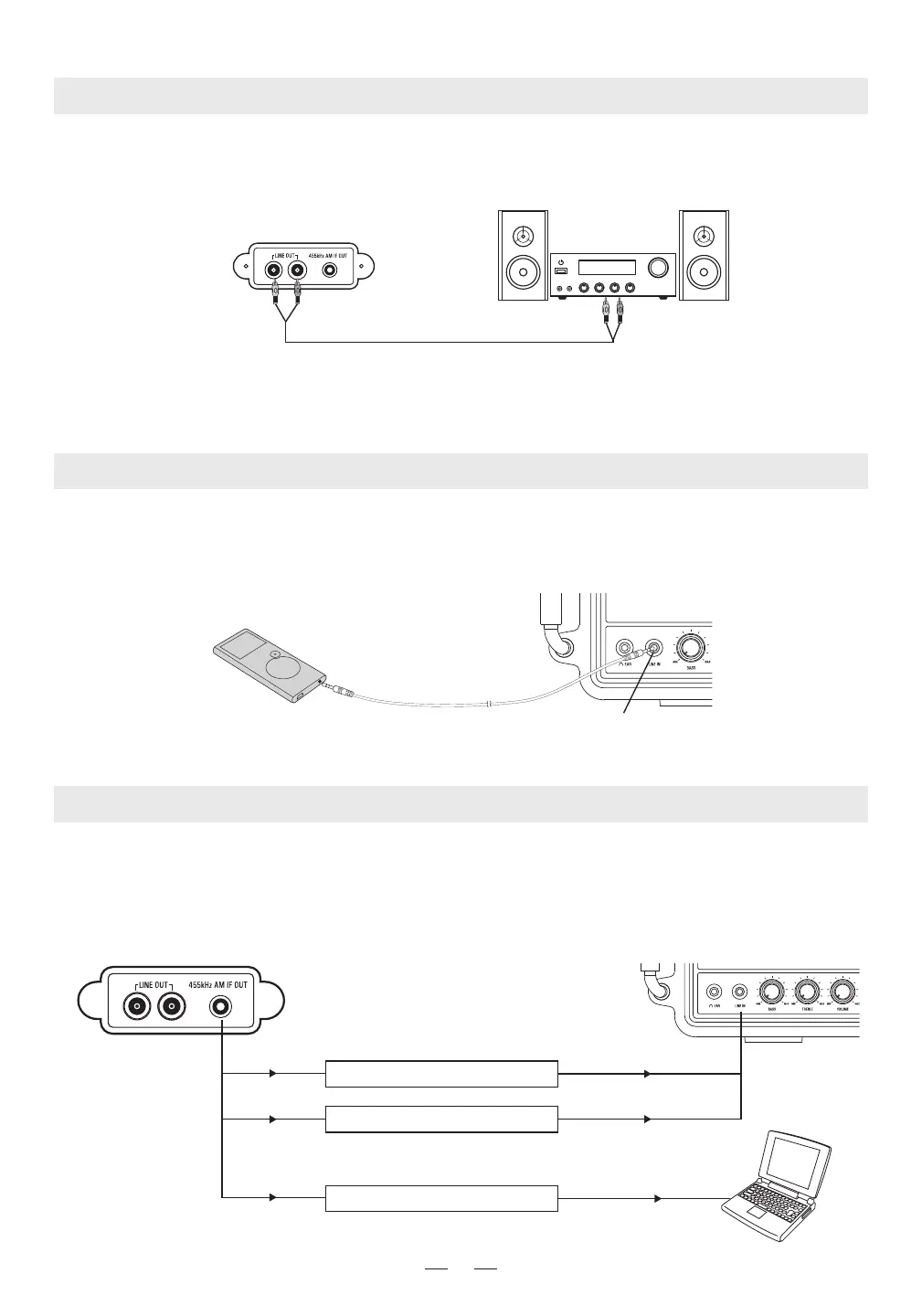

On the back of the radio are the left and right sockets labeled LINE OUT. You can use a
connector with 3.5mm plug to transfer the audio sound to another device.
Note: The line-out output sound level is not controlled by the radio's VOLUME knob.
L
Rear
To an amplifier or a recorder.
The LINE-IN socket is on the lower left front of the radio and allows you to route the sound from
another device to the TECSUN S-2000. Use a cord with a 3.5 mm (1/8 inch) stereo plug.
MP3 player
LINE-IN socket
There is a 455 kHz AM IF outlet on the back of the radio next to the LINE OUT sockets. It is used
for radio amateurs to connect some devices by DIY (Do It Yourself), ie, synchronous demodulator,
SSB demodulator, software radio (DSP) demodulator, DRM 455/12kHz converter etc.
L R
S-2000 Front
S-2000 Rear
Synchronous demodulator, SSB demodulator
To the LINE IN sockets
To the LINE IN sockets
Software radio (DSP) demodulator
DRM 455/12kHz converter etc
To the computer
