844E Sprayer Control
Speed Step 2 - Installing The Wheel Magnets
Check for pre-drilled holes in the wheel rim. If pre-drilled holes are not available, layout a pattern as shown in
Figure 1-7 and drill two 3/8″ (10 mm) holes near the outer edge of the rim if possible, and 180° from each other.
Place the magnets into each of the two holes on the inside rim and securely fasten them using the nuts and
washers provided.

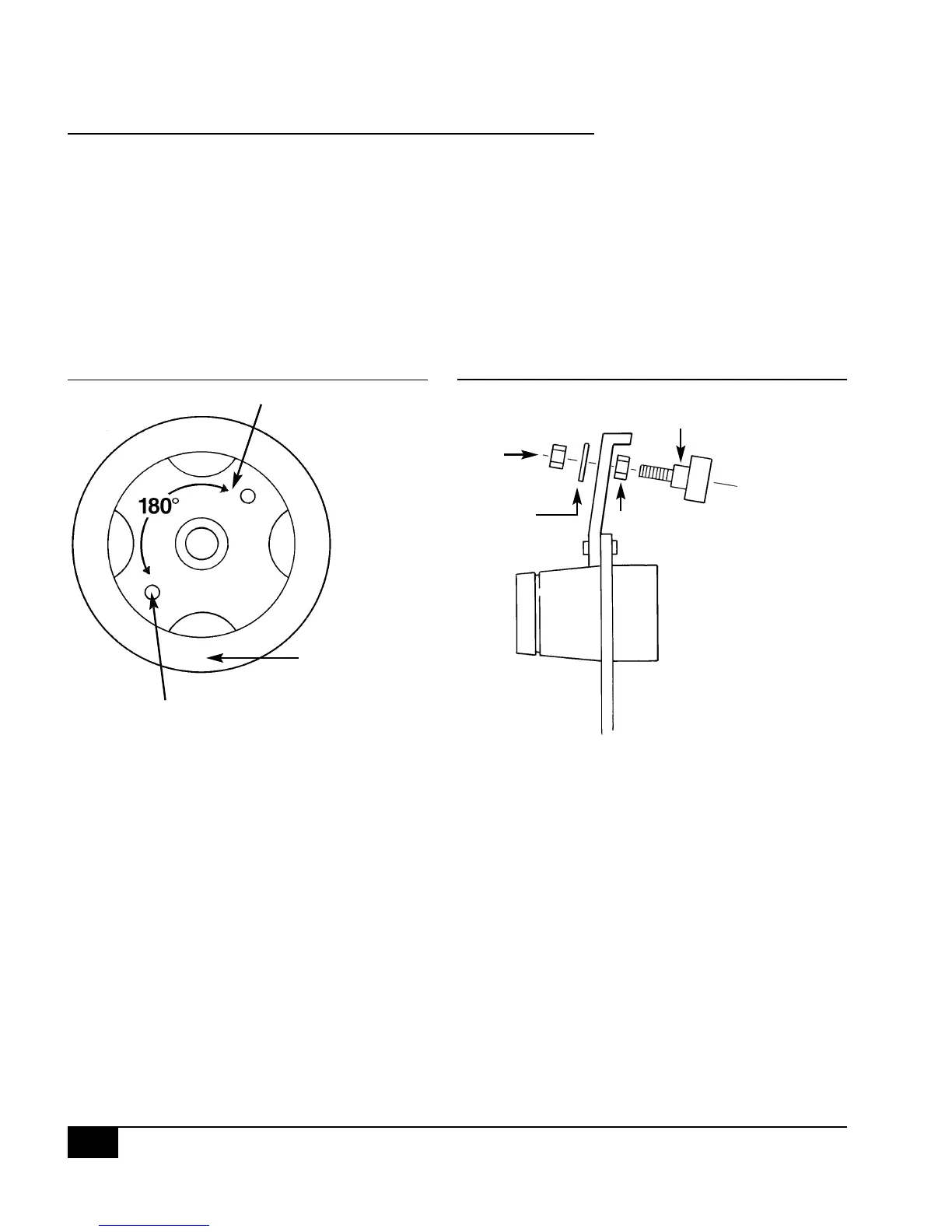

Figure 1-7: Magnet Locations
TIRE
WHEEL
3/8Ý (10 mm)
HOLE FOR
MAGNET
Figure 1-8: Magnet Assembly
NUT
NUT
MAGNET
WASHER
