844E Sprayer Crontrol
98-70006 R3
MOUNTING THE TEEJET 844 CONSOLE
Console Step 1 - Location
Determine the best location for the control console in the cab or operator’s compartment. Allow suffi cient
clearance, approximately 4-5″ (10-12 cm) to accommodate for the cable that will be connected to the right side of
the console.
Console Step 2 - Mounting
Mount the console to a fi rm support within the cab area, and secure using the slots provided on the top, back, or
bottom of the Console. Although two simple brackets are supplied with the unit, some additional bracketing may
be necessary. The slots in the 844 will accept 1/4″ (6 mm) bolts.

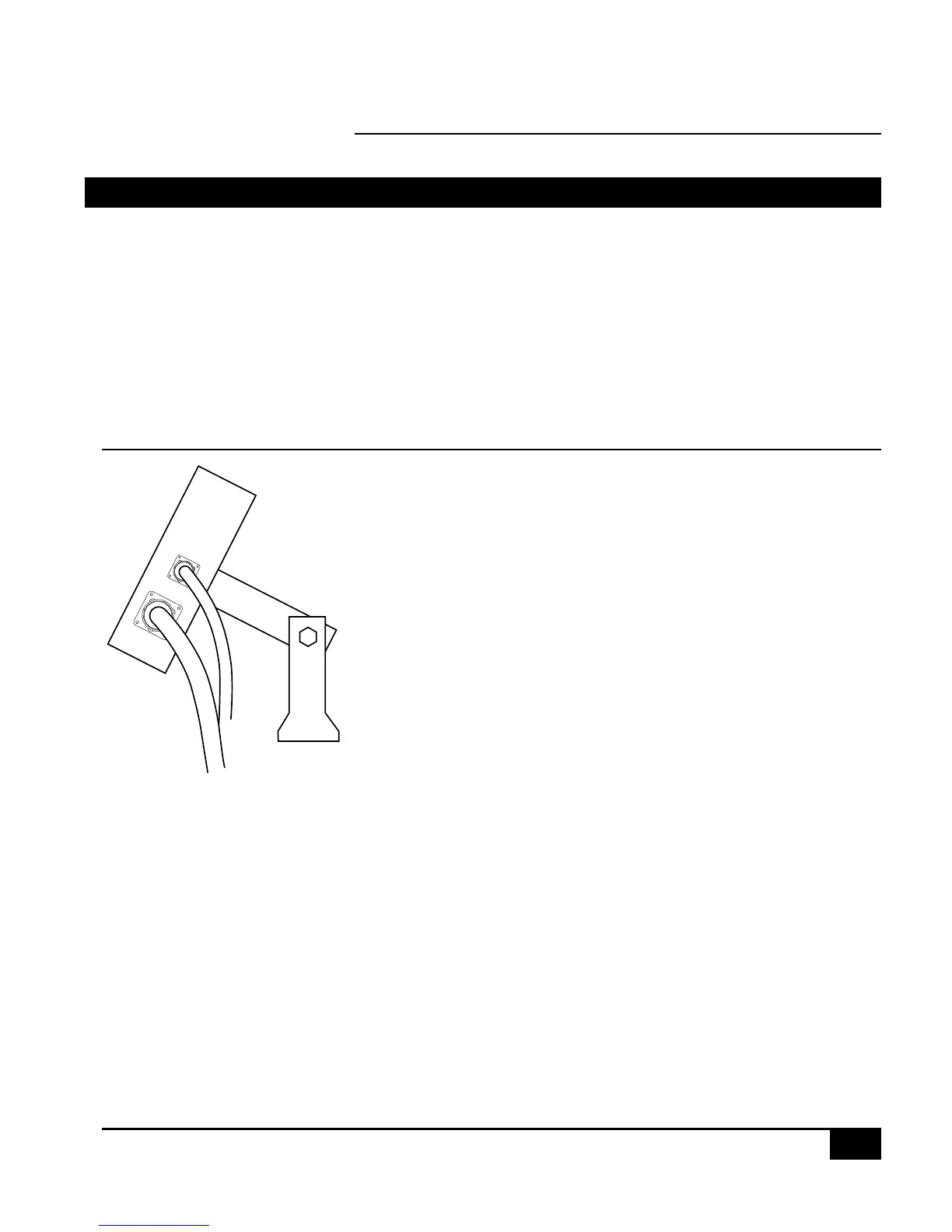

Figure 1-11: Brackets Provide Angle Adjustment
