844E Sprayer Crontrol
98-70006 R3
Connect Step 1 - Wiring Layout
Determine the best cable routing to the sprayer control components on the sprayer. This may be along the fl ow
line, main frame of the sprayer, or wherever the cables can be conveniently secured. Avoid any situation where
the cables may lay in puddles, or come in contact with extreme heat sources.
WARNING: System Components should be mounted at least 3 ft / 1 m from areas of excessive vibration
(i.e. engines) to avoid high frequency interference.

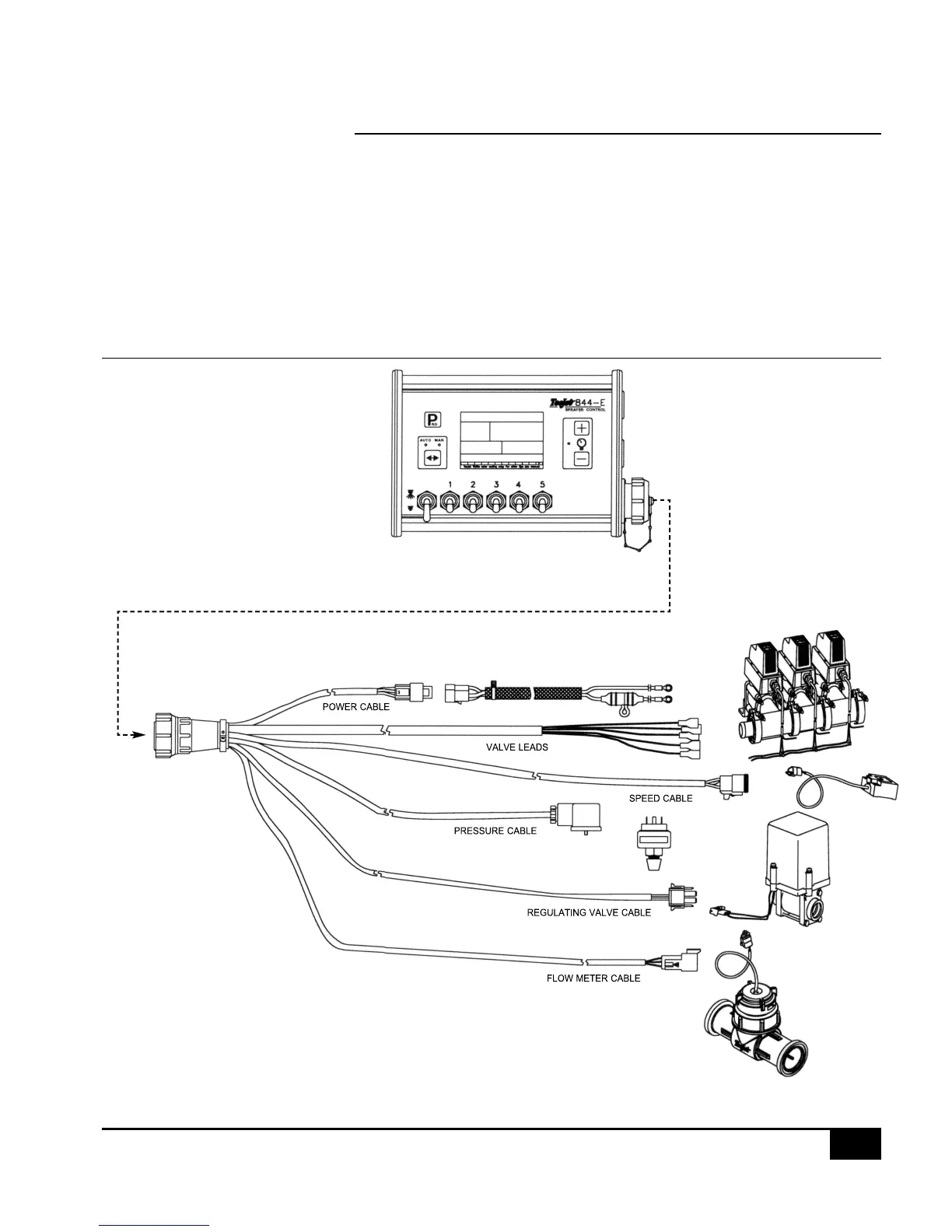

Figure 1-14: Wiring Layout
