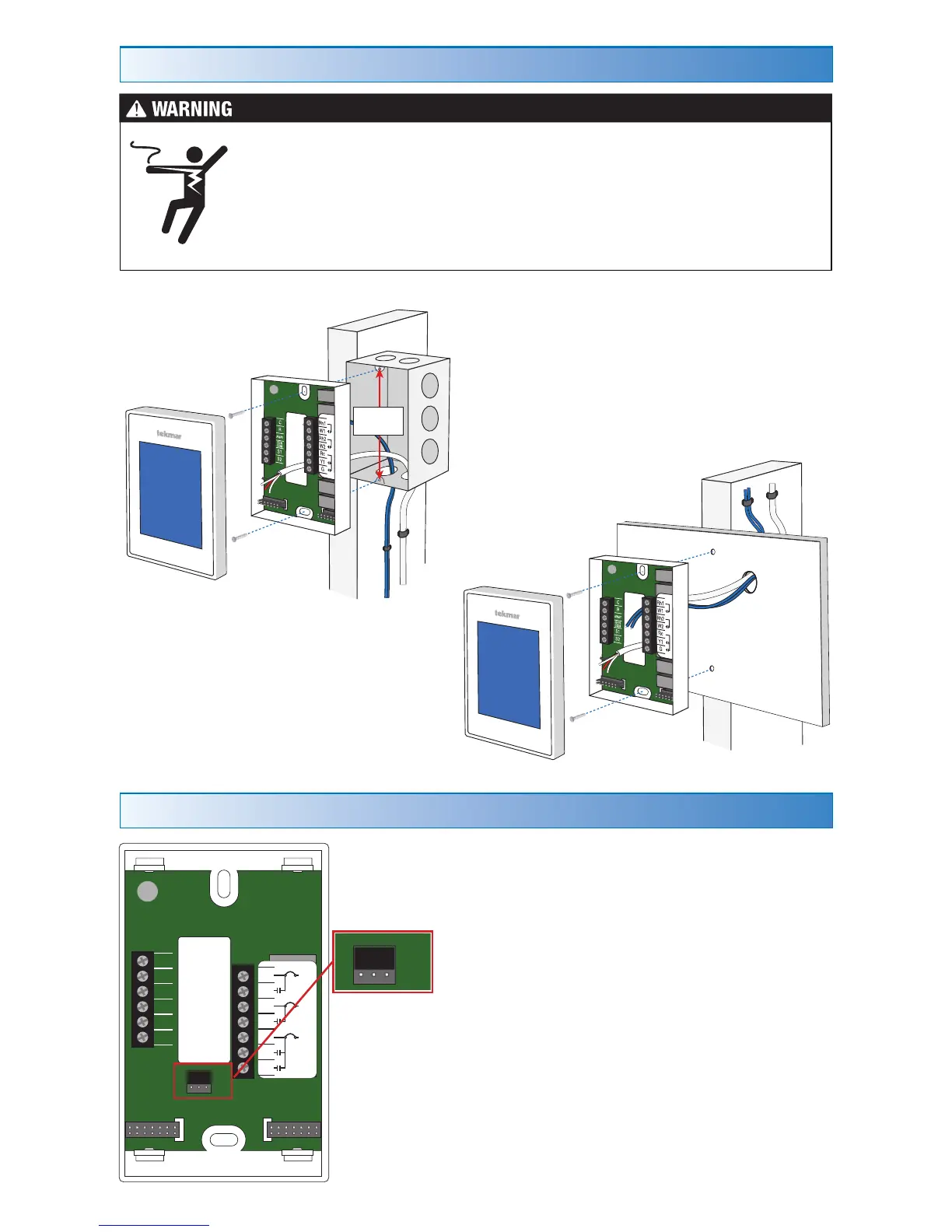

Mounting The Thermostat
Relay Power Jumpers
To prevent the risk of personal injury and/or death, make sure power is
not applied to the thermostat until it is fully installed and ready for final
testing. All work must be done with power to the circuit being worked
on turned off.
Please be aware local codes may require this thermostat to be installed
or connected by an electrician.
The thermostat includes three relay power
jumper connectors located below the wiring
hole.
• Set Jumper J1 to On to connect power R
to the Rh1 terminal.
•
Set Jumper J2 to On to connect power R
to the Rh2 wiring terminal.
•
Set Jumper J3 to On connects power R
to the Rc wiring terminal.
•
Set the jumper to off to disconnect the
power from Rh1, Rh2, or Rc respectively.
