Tektronix 2235 User Manual

0
m
z
71
2235 Service
5
wp
4
6
7
8
am .
15
- 20
-25
-30
031

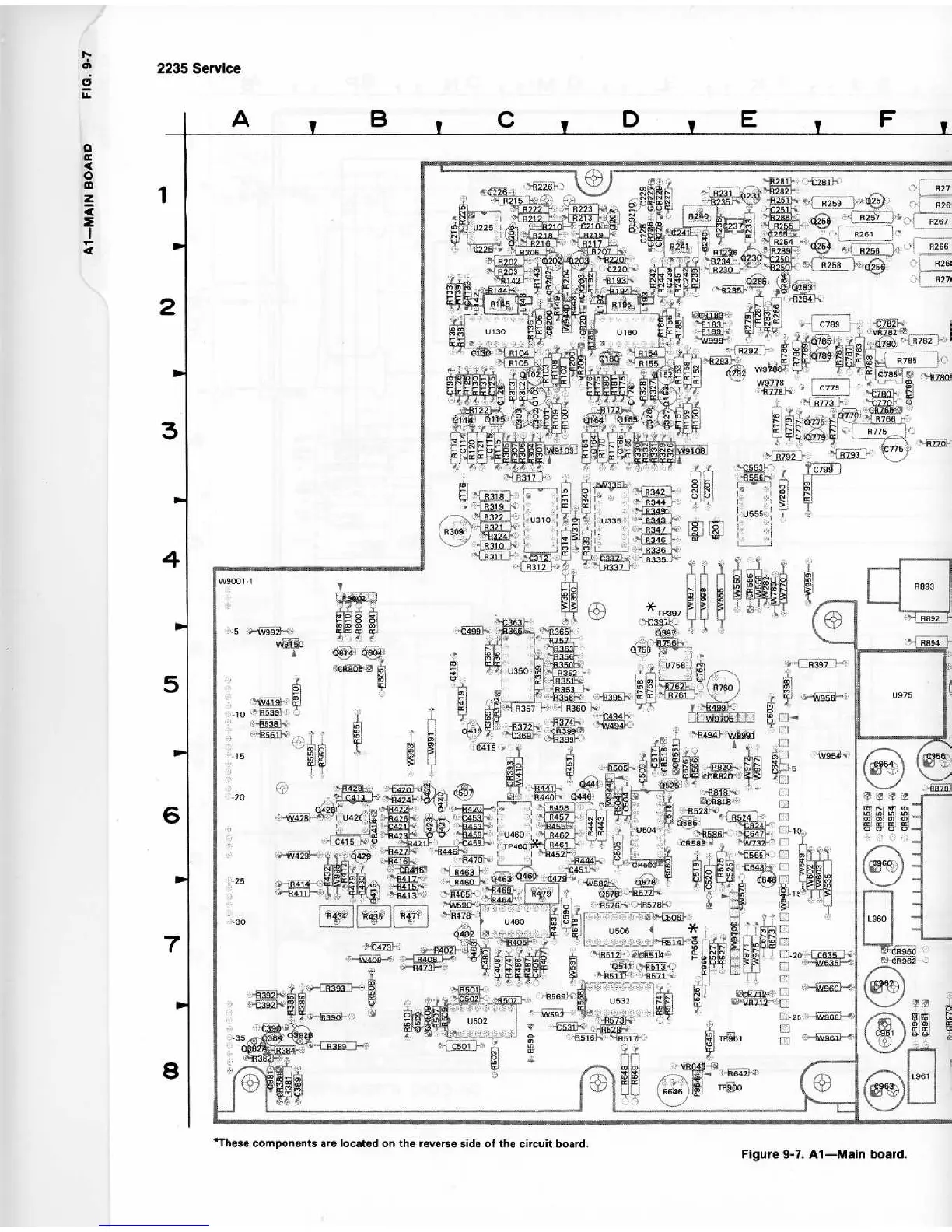

* These Components are located on the reverse
side
of the circuit
board .
Figure 9-7 . Al-Main board .
R267
R266
R26C
R27-

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
