Tektronix 2235 User Manual

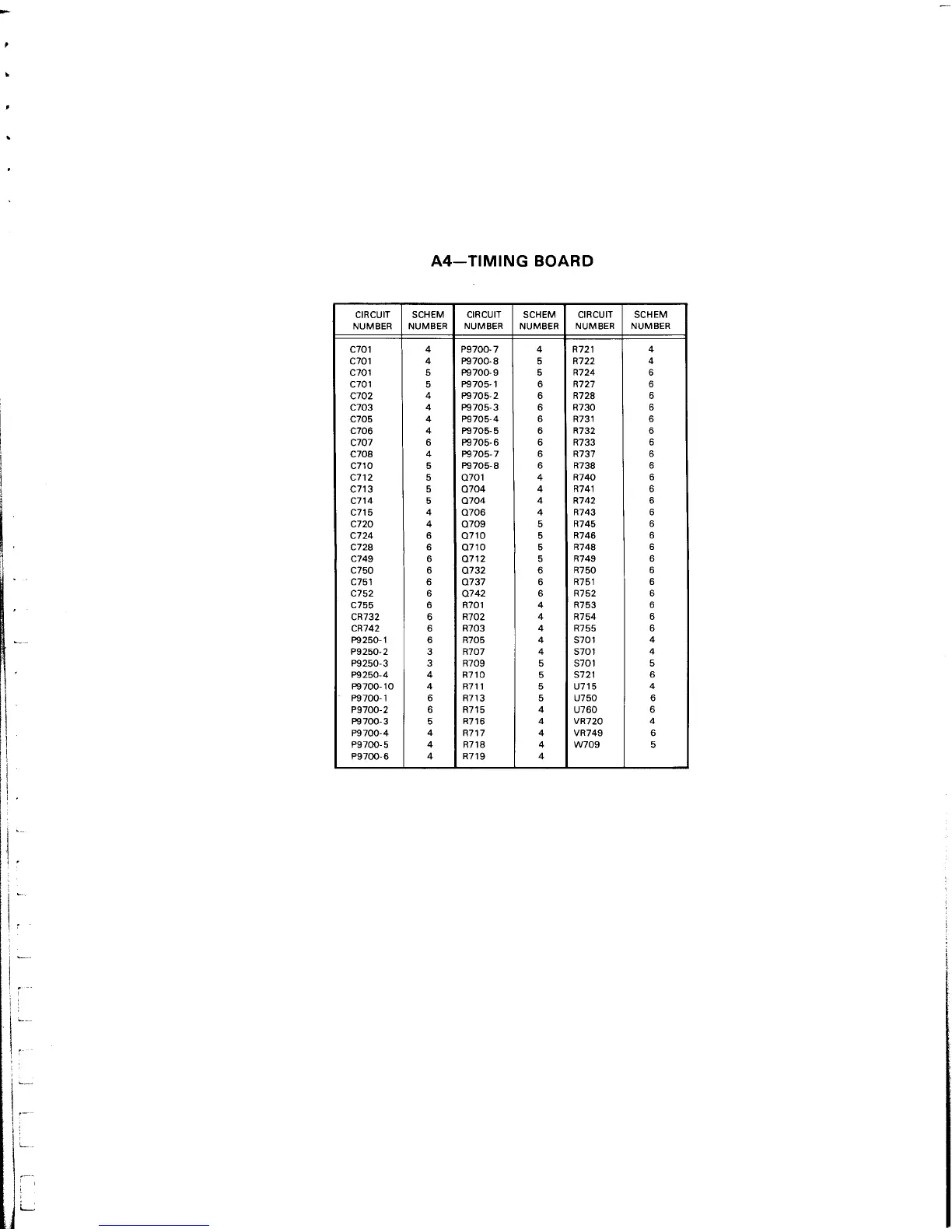

A4-TIMING BOA R D
CI R CU IT SC HEM CI RCU IT SC HEM CI R C U IT SC HEM
NUMBER NUMBERNUMBER NUMBER NUMBER
NUMBER
C701 4 Ρ 9700-7 4 R721 4
C701 4 Ρ 9700-8 5 R722 4
C701 5 Ρ 9700-9 5 R724 6
C701 5 Ρ 9705-1 6 R727 6
C702 4 Ρ 9705-2 6 R728 6
C703 4 Ρ 9705-3 6 R730 6
C705 4 Ρ 9705-4 6 R731 6
C706 4 Ρ 9705-5 6 R732 6
C707 6 Ρ 9705-6 6 R733 6
C708 4 Ρ 9705-7 6 R737 6
C710 5 Ρ 9705-8 6 R738 6
C712 5 0701 4 R740 6
C713 5 Q704 4 R741 6
C714 5 Q704 4 R742 6
C715 4 Q706 4 R743 6
C720 4 0709 5 R745 6
C724 6 0710 5 R746 6
C728 6 0710 5 R748
6
C749 6 Q712 5 R749 6
C750 6 0732 6 R750
6
C751 6 0737 6 R751 6
C752 6 Q742 6 R752 6
C755 6 R701 4 R753 6
C
R 732 6 R702 4 R754 6
C R 742 6 R703 4 R755 6
Ρ9250-1 6 R705 4 S701 4
Ρ 9250-2 3 R707 4 S701 4
Ρ 9250-3 3 R709 5 S701 5
Ρ 9250-4 4 R710 5 S721 6
Ρ 9700-10 4 R711 5 U 715 4
Ρ 9700-1 6 R713 5 U 750 6
Ρ 9700-2 6 R715 4 U 760 6
Ρ 9700-3 5 R716
4 VR
720
4
Ρ 9700-4 4 R717 4 VR 749 6
Ρ 9700-5 4 R 718 4 W 709 5
Ρ 9700-6 4 R719 4

Tektronix 2235 Specifications

General

Bandwidth	100 MHz
Channels	2
Vertical Sensitivity	2 mV/div to 5 V/div
Maximum Input Voltage	400 V (DC + AC peak)
Rise Time	3.5 ns
Vertical Resolution	8 bit
Input Impedance	1 MΩ || 20 pF
Power Requirements	90 to 250 V AC, 48 to 440 Hz
Trigger Modes	Auto, Normal, Single
Display	CRT
Weight	17 lb (7.7 kg)
